Compare the weaving machines, given in Table 1, for their WIR’s.
Give your reasons for the parameters influencing the production
rates of these machines. Which machine is the most productive?
Which machine is the lowest productive? Why?
Compare The Weaving Machines Given In Table 1 For Their Wir S Give Your Reasons For The Parameters Influencing The Pr 1 (116.39 KiB) Viewed 40 times

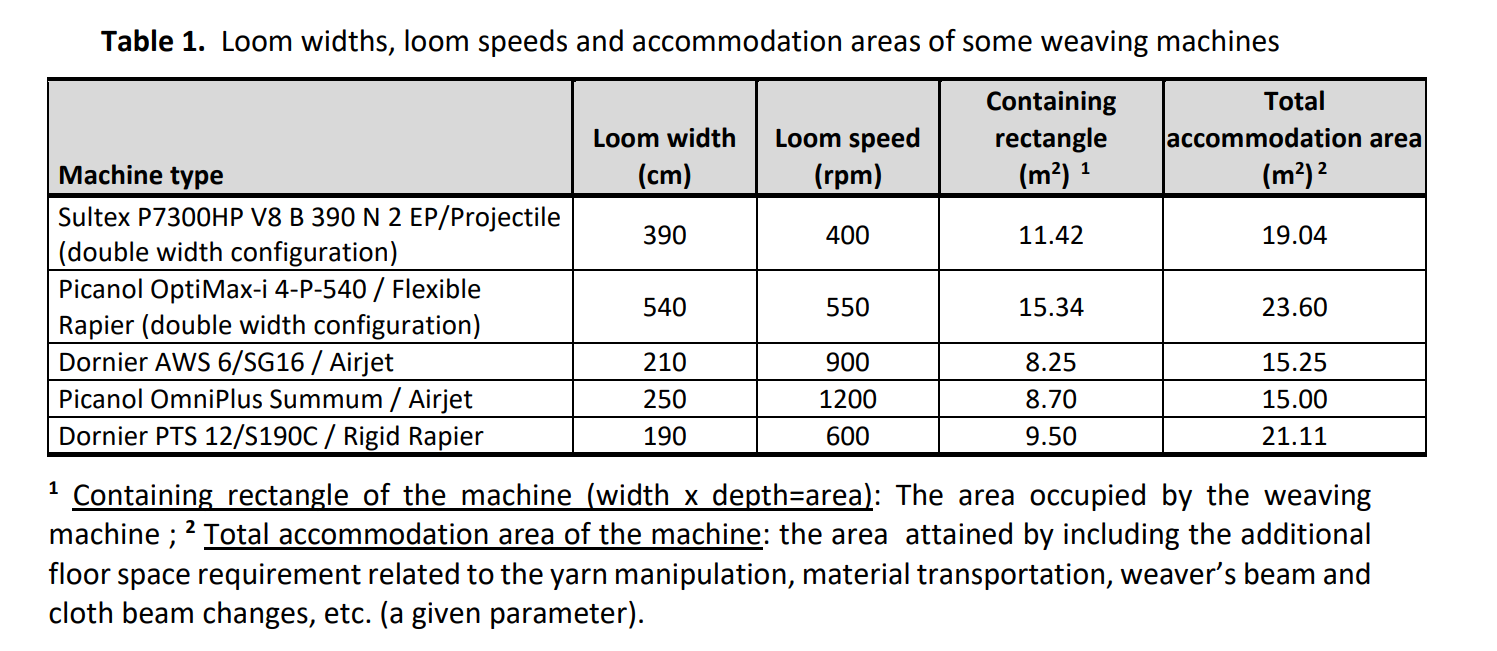

Table 1. Loom widths, loom speeds and accommodation areas of some weaving machines Loom width (cm) Loom speed (rpm) Containing rectangle (m2) 1 Total accommodation area (m2) 390 400 11.42 19.04 Machine type Sultex P7300HP V8 B 390 N 2 EP/Projectile (double width configuration) Picanol OptiMax-i 4-P-540 / Flexible Rapier (double width configuration) Dornier AWS 6/SG16 / Airjet Picanol OmniPlus Summum / Airjet Dornier PTS 12/S190C / Rigid Rapier 540 550 15.34 23.60 210 250 900 1200 600 8.25 8.70 9.50 15.25 15.00 21.11 190 1 Containing rectangle of the machine (width x depth=area): The area occupied by the weaving machine ; ? Total accommodation area of the machine: the area attained by including the additional floor space requirement related to the yarn manipulation, material transportation, weaver's beam and cloth beam changes, etc. (a given parameter).
