A 10V range voltmeter with a sensitivity of 40092/V is connected to the circuit as shown in Figure 3. a) b) c) d) E =9V

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

A 10V range voltmeter with a sensitivity of 40092/V is connected to the circuit as shown in Figure 3. a) b) c) d) E =9V

Post by answerhappygod »

A 10v Range Voltmeter With A Sensitivity Of 40092 V Is Connected To The Circuit As Shown In Figure 3 A B C D E 9v 1
A 10v Range Voltmeter With A Sensitivity Of 40092 V Is Connected To The Circuit As Shown In Figure 3 A B C D E 9v 1 (28.7 KiB) Viewed 36 times

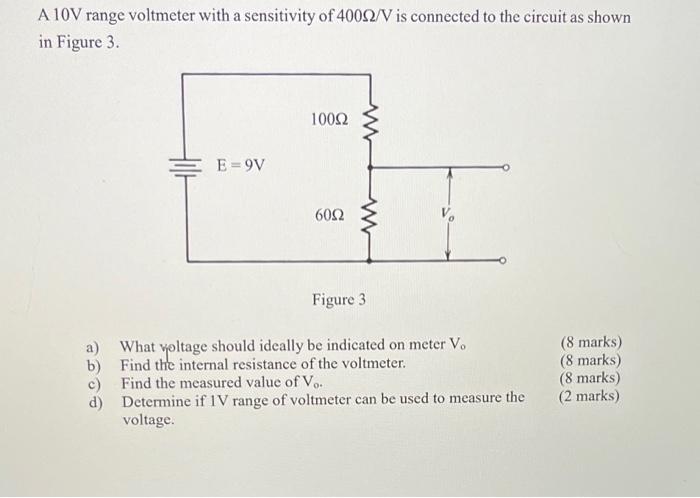

A 10V range voltmeter with a sensitivity of 40092/V is connected to the circuit as shown in Figure 3. a) b) c) d) E =9V 100Ω 6092 www Figure 3 What voltage should ideally be indicated on meter Vo Find the internal resistance of the voltmeter. Find the measured value of V.. Determine if IV range of voltmeter can be used to measure the voltage. (8 marks) (8 marks) (8 marks) (2 marks)
