a) Write the Boolean expression for the logic circuit in Figure 2. D b) Based on Table 1, answer the following questions
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
a) Write the Boolean expression for the logic circuit in Figure 2. D b) Based on Table 1, answer the following questions

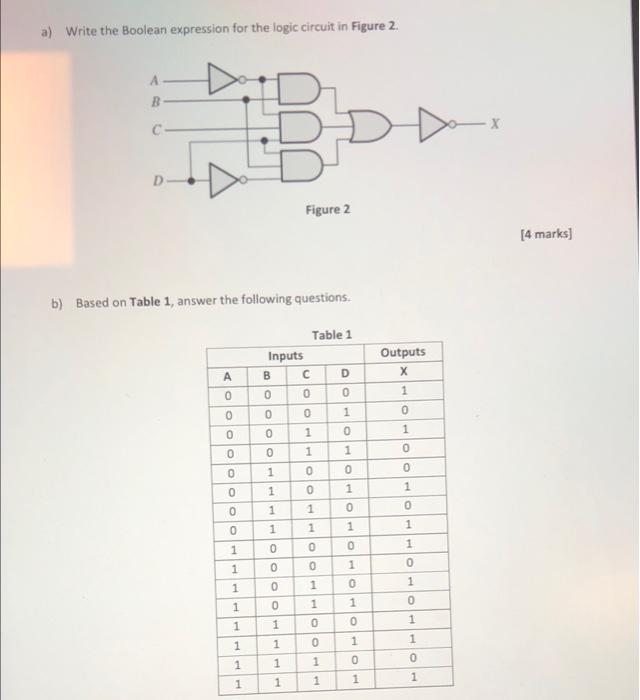

a) Write the Boolean expression for the logic circuit in Figure 2. D b) Based on Table 1, answer the following questions. A 0 0 0 OOOO 0 0 07 1 1 1 1 1 1 1 1 Inputs B 80 0 0 0 1 1 1 1 0 0 OOHH 0 Figure 2 0 1 1 1 Table 1 C 0 OTTO 1 1 0 0 1 1 1 0 0 1 1 0 1 1 0 0 DO 0 1 0 1 0 1 0 1 0 1 0 HO 1 0 1 0 1 Outputs X 1 0 1 0 0 1 0 1 1 0 1 0 1 1 0 1 [4 marks]
