Subject Name: Modern Control theory

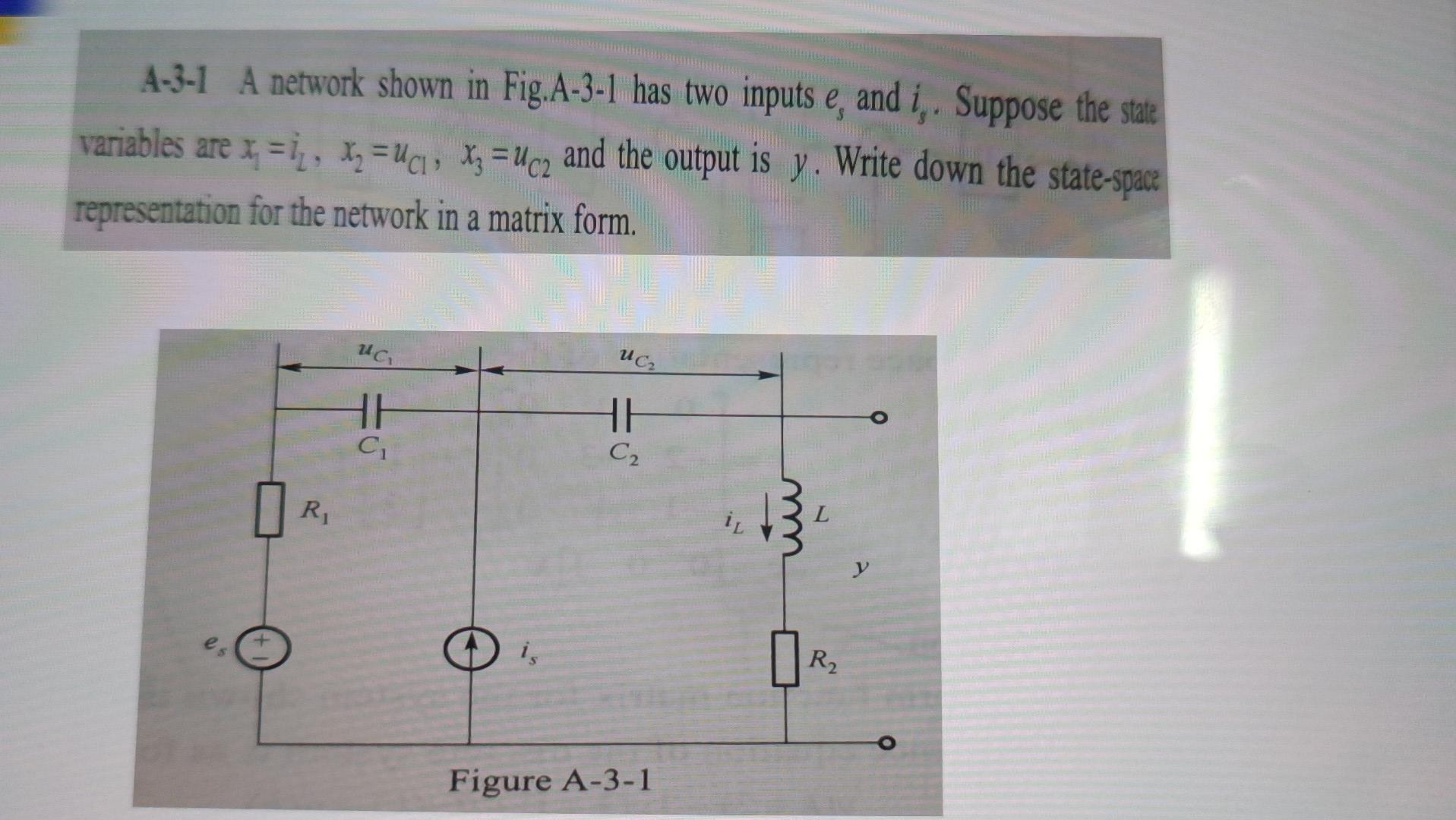

A-3-1 A network shown in Fig.A-3-1 has two inputs e, and i,. Suppose the state variables are x = 1₁, x₂ = x3 = Uc2 and the output is y. Write down the state-space UC₁, representation for the network in a matrix form. R₁ UC HE C₁ UC₂ HE C2 Figure A-3-1 R₂
