2. a) Design a lead compensator to be applied to type 1 system with transfer function shown below using root locus. Take

Post by answerhappygod »

2 A Design A Lead Compensator To Be Applied To Type 1 System With Transfer Function Shown Below Using Root Locus Take 1
2 A Design A Lead Compensator To Be Applied To Type 1 System With Transfer Function Shown Below Using Root Locus Take 1 (15.73 KiB) Viewed 47 times

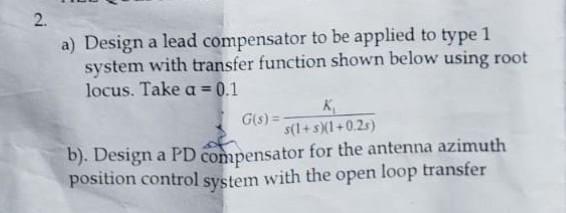

2. a) Design a lead compensator to be applied to type 1 system with transfer function shown below using root locus. Take a = 0.1 K₁ G(s)=- s(1+5)(1+0.2s) b). Design a PD compensator for the antenna azimuth position control system with the open loop transfer
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
