P3.5 The waveform for the current flowing through a 10 µF capacitor in Fig. 3.5 is shown in Fig. 1.4b. If v.(1-0) 1 V, d

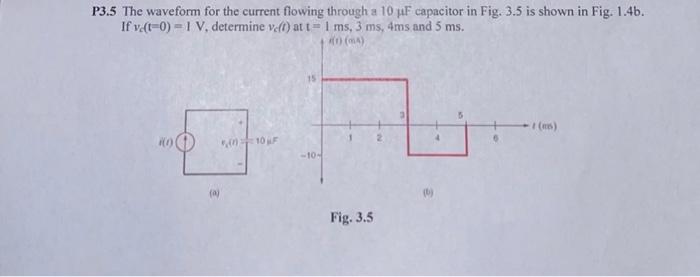

P3.5 The waveform for the current flowing through a 10 µF capacitor in Fig. 3.5 is shown in Fig. 1.4b. If v.(1-0) 1 V, determine ve(t) at t= 1 ms, 3 ms, 4ms and 5 ms. (1)(A) 100 (a) (0)10 F -10- Fig. 3.5 4 (ms)
