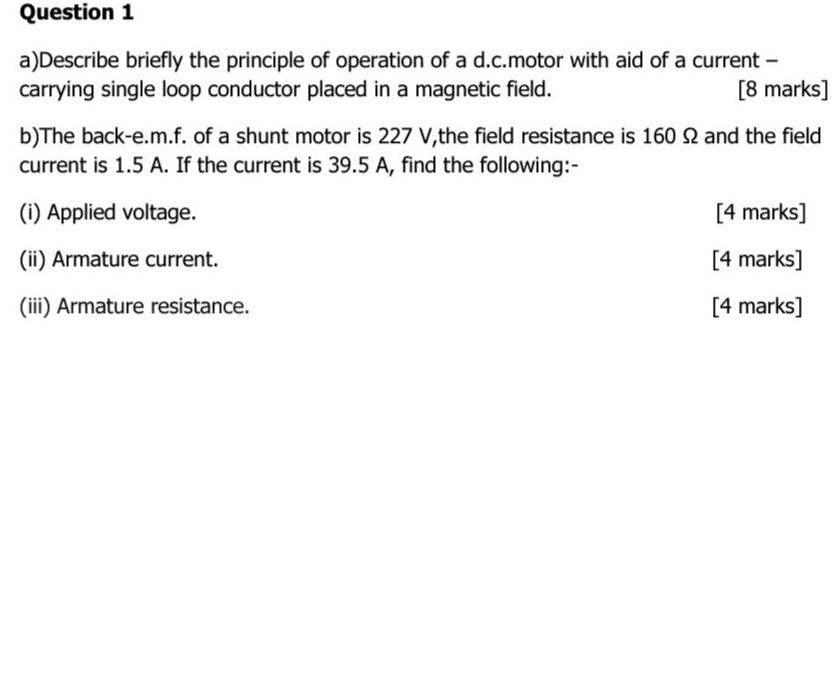

Question 1 A Describe Briefly The Principle Of Operation Of A D C Motor With Aid Of A Current Carrying Single Loop Con 1 (38.9 KiB) Viewed 32 times
Please write clearly, and where necessary include neat sketches,I will upvolt Question 1 a)Describe briefly the principle of operation of a d.c.motor with aid of a current - carrying single loop conductor placed in a magnetic field. [8 marks] b)The back-e.m.f. of a shunt motor is 227 V,the field resistance is 160 2 and the field current is 1.5 A. If the current is 39.5 A, find the following: - (i) Applied voltage. (ii) Armature current. (iii) Armature resistance. [4 marks] [4 marks] [4 marks]
