ed 0 7 A logic gate that has the low level of the output VOL 0.3 V and the high level of the output VoH = 3.5 V drives a

[answerhappygod]

Ed 0 7 A Logic Gate That Has The Low Level Of The Output Vol 0 3 V And The High Level Of The Output Voh 3 5 V Drives A 1 (52.19 KiB) Viewed 38 times

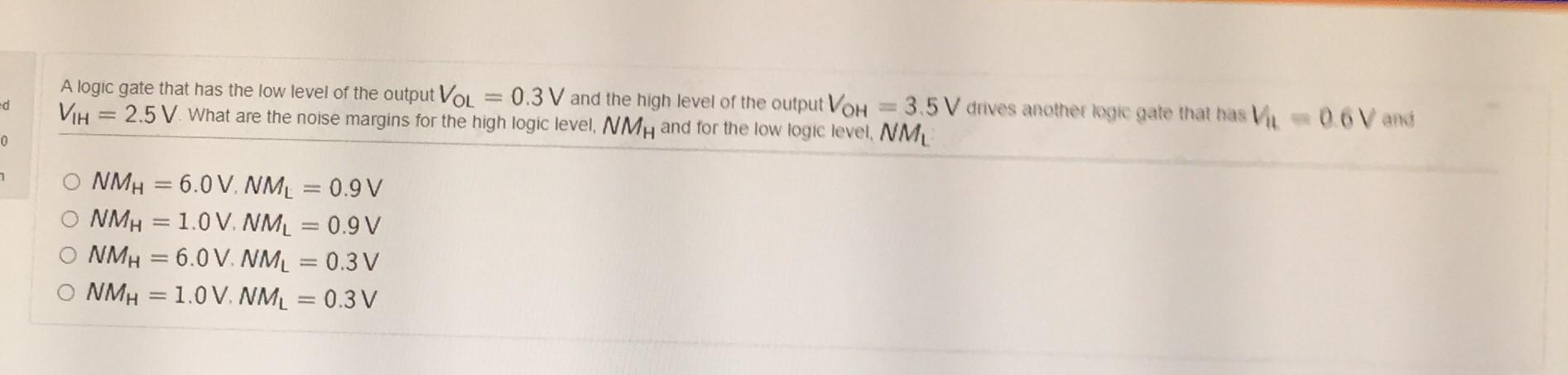

ed 0 7 A logic gate that has the low level of the output VOL 0.3 V and the high level of the output VoH = 3.5 V drives another logic gate that has V = 0.6V and 2.5 V. What are the noise margins for the high logic level, NMH and for the low logic level, NML VIH O NMH = 6.0 V. NML = 0.9 V 0.9 V NMH = 1.0 V. NML = NMH = 6.0 V. NML = 0.3 V NMH = 1.0 V. NML = 0.3 V
