1. 2. Use a Fourier expansion to determine harmonic content and also to plot the harmonic profile up to the 21st harmoni

[answerhappygod]

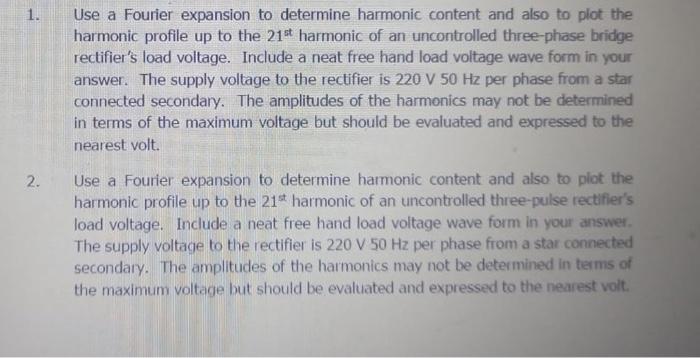

1 2 Use A Fourier Expansion To Determine Harmonic Content And Also To Plot The Harmonic Profile Up To The 21st Harmoni 1 (39.51 KiB) Viewed 36 times

1. 2. Use a Fourier expansion to determine harmonic content and also to plot the harmonic profile up to the 21st harmonic of an uncontrolled three-phase bridge rectifier's load voltage. Include a neat free hand load voltage wave form in your answer. The supply voltage to the rectifier is 220 V 50 Hz per phase from a star connected secondary. The amplitudes of the harmonics may not be determined in terms of the maximum voltage but should be evaluated and expressed to the nearest volt. Use a Fourier expansion to determine harmonic content and also to plot the harmonic profile up to the 21st harmonic of an uncontrolled three-pulse rectifier's load voltage. Include a neat free hand load voltage wave form in your answer. The supply voltage to the rectifier is 220 V 50 Hz per phase from a star connected secondary. The amplitudes of the harmonics may not be determined in terms of the maximum voltage but should be evaluated and expressed to the nearest volt.
