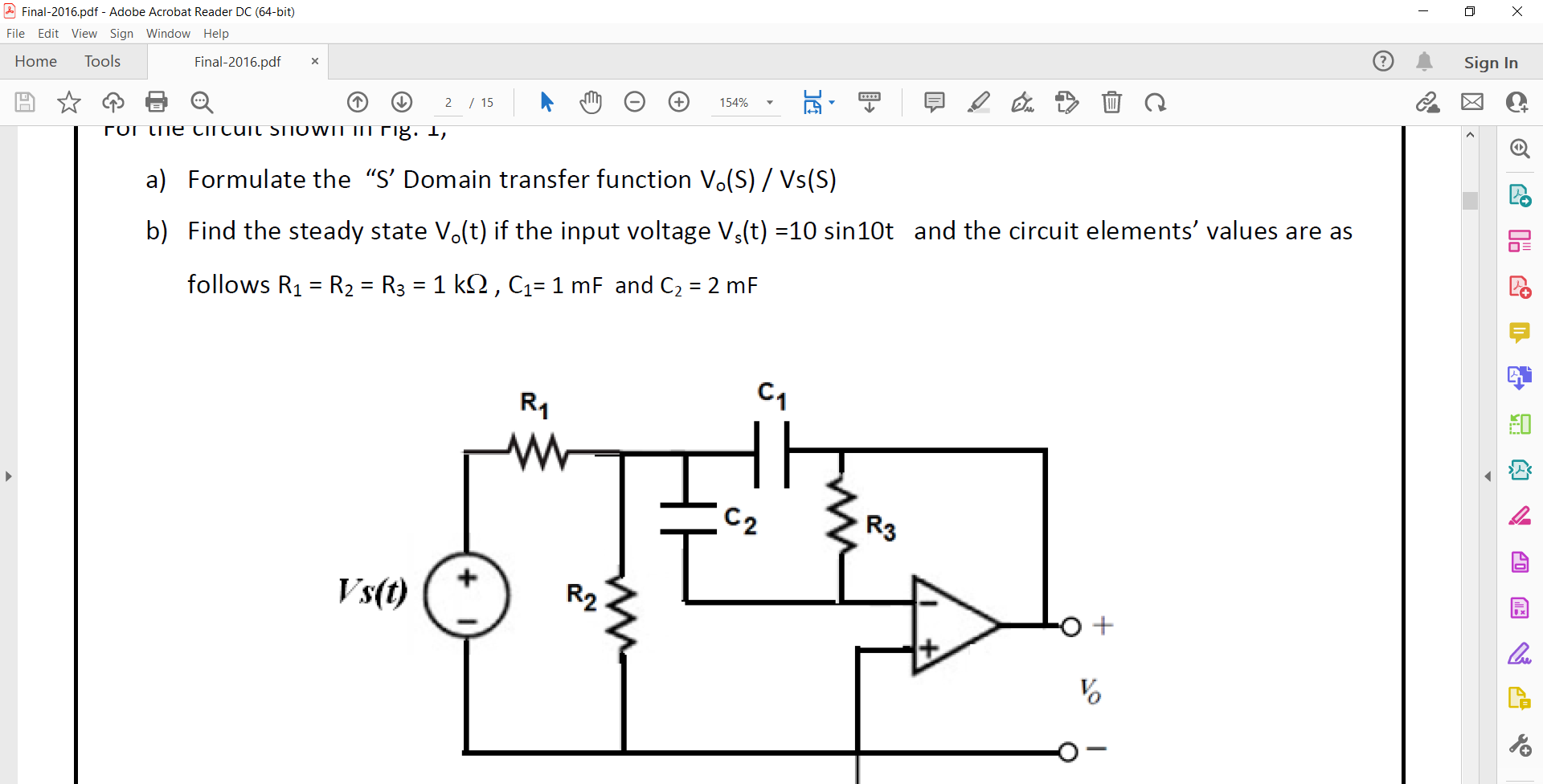

Final-2016.pdf - Adobe Acrobat Reader DC (64-bit) File Edit View Sign Window Help Home Tools Final-2016.pdf X ↑ ↓↓ For the circuit shown in rig. 1, a) Formulate the “S’ Domain transfer function V.(S) / Vs(S) b) Find the steady state V.(t) if the input voltage V₁(t) =10 sin10t and the circuit elements' values are as follows R₁ = R₂ = R3 = 1 kQ, C₁= 1 mF and C₂ = 2 mF Vs(t) 2 / 15 R₁ www R2 154% C₁ C₂ R3 + Ⓒ I 0 X Sign In < C € 10 RO 37 40 ₁x Cu
