Question 4 R₁ + R₂ V₂ + Consider the circuit in Figure Q4 V₁ R3 Figure Q4 R3 = 6kN, R4 = 3kn, V₁ = 8V Select values for

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

Question 4 R₁ + R₂ V₂ + Consider the circuit in Figure Q4 V₁ R3 Figure Q4 R3 = 6kN, R4 = 3kn, V₁ = 8V Select values for

Post by answerhappygod »

Question 4 R R V Consider The Circuit In Figure Q4 V R3 Figure Q4 R3 6kn R4 3kn V 8v Select Values For 1
Question 4 R R V Consider The Circuit In Figure Q4 V R3 Figure Q4 R3 6kn R4 3kn V 8v Select Values For 1 (51.64 KiB) Viewed 23 times

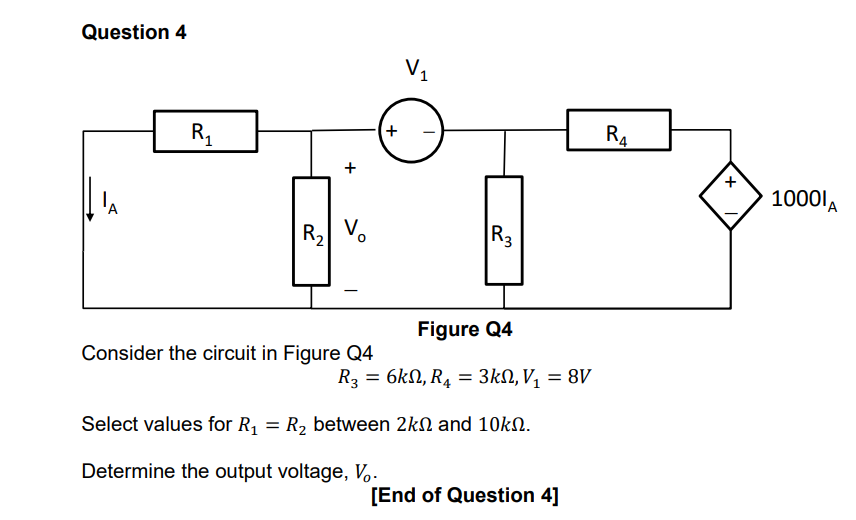

Question 4 R₁ + R₂ V₂ + Consider the circuit in Figure Q4 V₁ R3 Figure Q4 R3 = 6kN, R4 = 3kn, V₁ = 8V Select values for R₁ = R₂ between 2k0 and 10kn. Determine the output voltage, V. [End of Question 4] R₂₁ + 10001A
