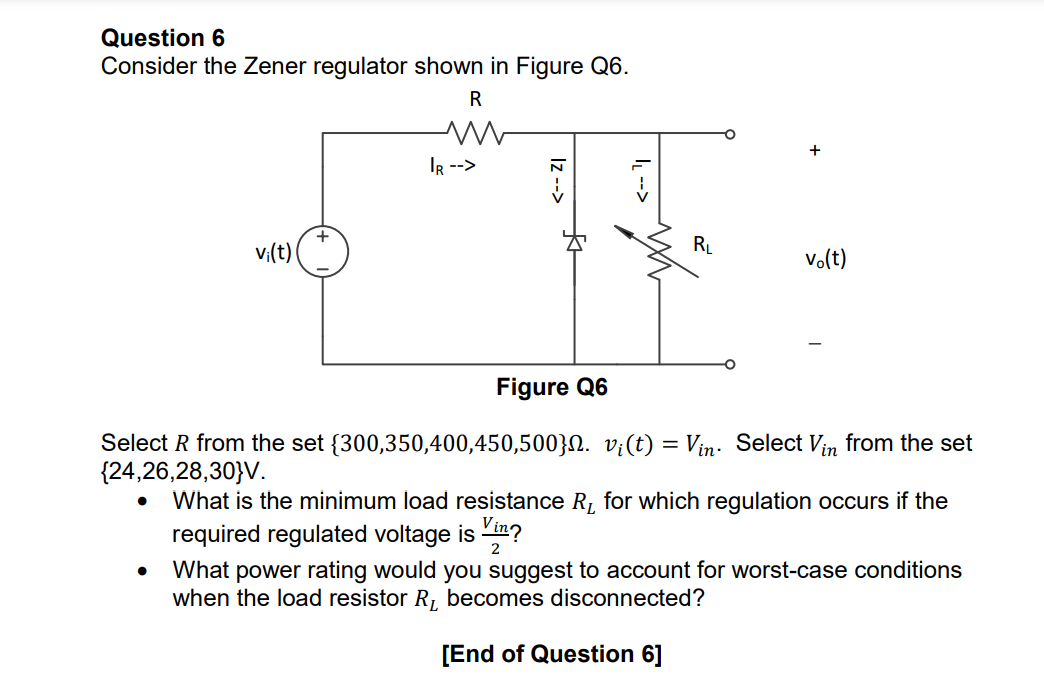

Question 6 Consider the Zener regulator shown in Figure Q6. vi(t) ● R m IR --> <-- ZI Figure Q6 1₁--> R₁ + vo(t) Select

[answerhappygod]

Question 6 Consider The Zener Regulator Shown In Figure Q6 Vi T R M Ir Zi Figure Q6 1 R Vo T Select 1 (98.02 KiB) Viewed 51 times

Question 6 Consider the Zener regulator shown in Figure Q6. vi(t) ● R m IR --> <-- ZI Figure Q6 1₁--> R₁ + vo(t) Select R from the set {300,350,400,450,500}. v¡(t) = Vin. Select Vin from the set {24,26,28,30}V. What is the minimum load resistance R₁ for which regulation occurs if the required regulated voltage is Vin? 2 What power rating would you suggest to account for worst-case conditions when the load resistor R₁ becomes disconnected? [End of Question 6]
