Design a passive RC low-pass filter (see (Figure 1)) with a cutoff frequency of 107 Hz using a 4.6 μF capacitor. Figure

[answerhappygod]

1 (28.14 KiB) Viewed 38 times

2 (22.6 KiB) Viewed 38 times

3 (28.67 KiB) Viewed 38 times

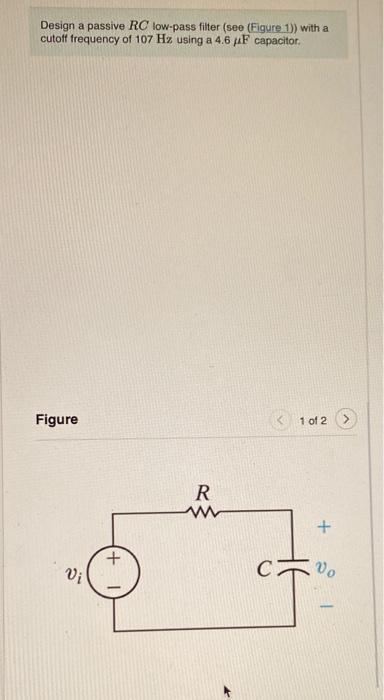

Design a passive RC low-pass filter (see (Figure 1)) with a cutoff frequency of 107 Hz using a 4.6 μF capacitor. Figure Vi + R www 1 of 2 + Vo -

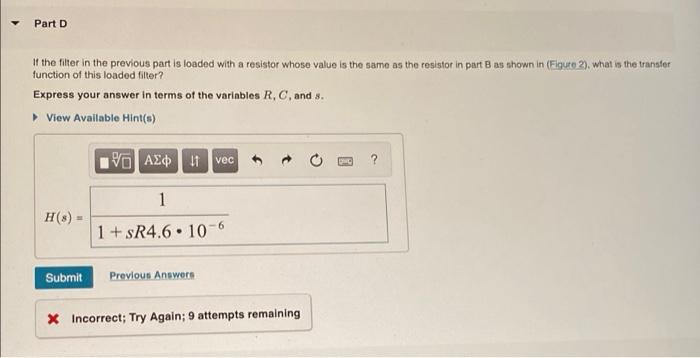

Part D If the filter in the previous part is loaded with a resistor whose value is the same as the resistor in part B as shown in (Figure 2), what is the transfer function of this loaded filter? Express your answer in terms of the variables R, C, and s. ▸ View Available Hint(s) H(s) = Submit 15.ΑΣΦ. 11 Ivec 1 1+sR4.6 10-6 Previous Answers X Incorrect; Try Again; 9 attempts remaining ONC

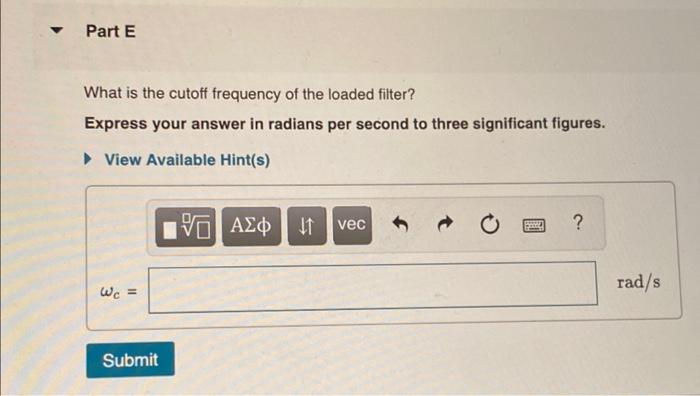

▼ Part E What is the cutoff frequency of the loaded filter? Express your answer in radians per second to three significant figures. ► View Available Hint(s) Wc = Submit [5] ΑΣΦ ↓↑ vec ? rad/s
