2) For the circuit shown. Sketch la vs V1 for the following values of V2 for V1 >0: V2 = 0V, V2 = 0.55V, V2=0.6V Assume

[answerhappygod]

2 For The Circuit Shown Sketch La Vs V1 For The Following Values Of V2 For V1 0 V2 0v V2 0 55v V2 0 6v Assume 1 (67.79 KiB) Viewed 42 times

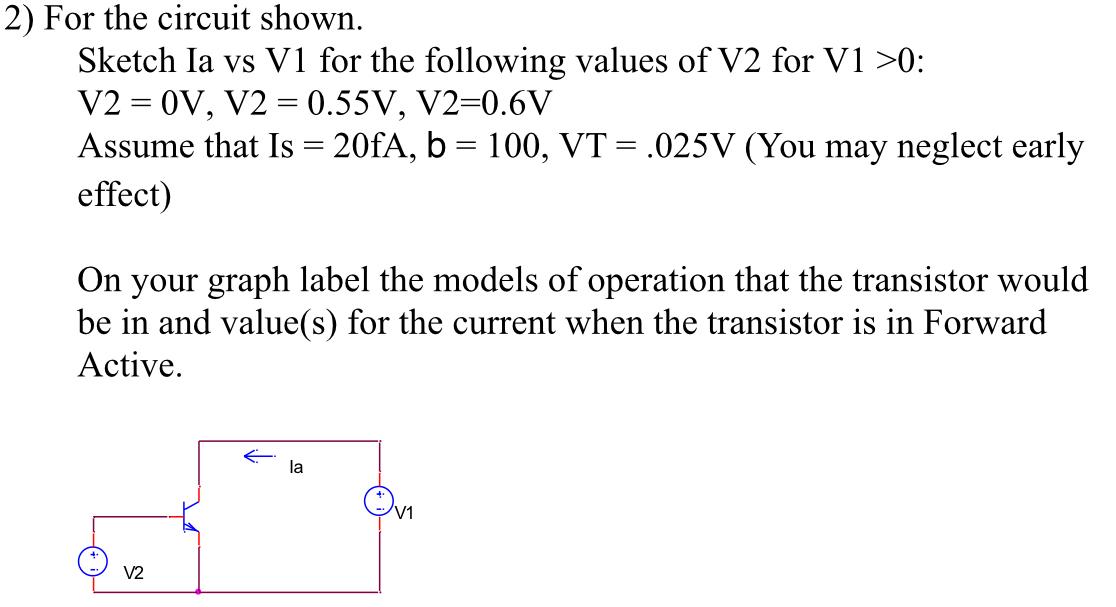

2) For the circuit shown. Sketch la vs V1 for the following values of V2 for V1 >0: V2 = 0V, V2 = 0.55V, V2=0.6V Assume that Is = 20fA, b = 100, VT = .025V (You may neglect early effect) On your graph label the models of operation that the transistor would be in and value(s) for the current when the transistor is in Forward Active. V2 la Dv₁
