The unity feedback system is given in Figure Q2.1. and its root locus is shown in Figure Q2.2. Answer the following ques

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

The unity feedback system is given in Figure Q2.1. and its root locus is shown in Figure Q2.2. Answer the following ques

Post by answerhappygod »

The Unity Feedback System Is Given In Figure Q2 1 And Its Root Locus Is Shown In Figure Q2 2 Answer The Following Ques 1
The Unity Feedback System Is Given In Figure Q2 1 And Its Root Locus Is Shown In Figure Q2 2 Answer The Following Ques 1 (31.5 KiB) Viewed 36 times

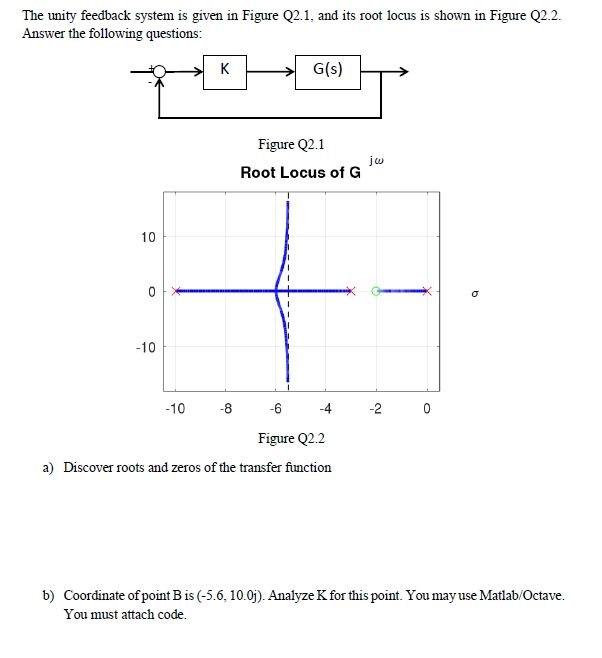

The unity feedback system is given in Figure Q2.1. and its root locus is shown in Figure Q2.2. Answer the following questions: 10 O -10 -10 K -8 G(s) Figure Q2.1 Root Locus of G I -6 Figure Q2.2 a) Discover roots and zeros of the transfer function -4 jw -2 0 5 b) Coordinate of point B is (-5.6, 10.0j). Analyze K for this point. You may use Matlab/Octave. You must attach code.
