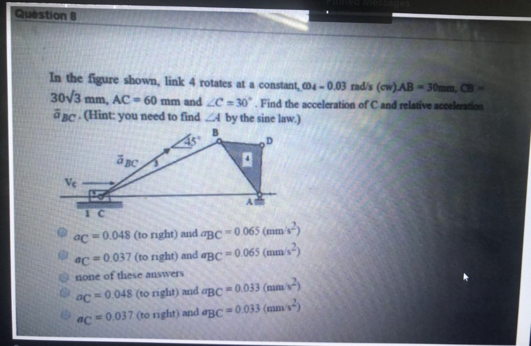

Question In the figure shown, link 4 rotates at a constant, 04-0.03 rad's (w) AB - 30mm. CB 30V3 mm, AC = 60 mm and C =

[answerhappygod]

Question In The Figure Shown Link 4 Rotates At A Constant 04 0 03 Rad S W Ab 30mm Cb 30v3 Mm Ac 60 Mm And C 1 (461.17 KiB) Viewed 31 times

Question In the figure shown, link 4 rotates at a constant, 04-0.03 rad's (w) AB - 30mm. CB 30V3 mm, AC = 60 mm and C = 30. Find the acceleration of Cand relative acceleration ac (Hint: you need to find A by the sine law.) a sc Іс ac = 0.048 (to right) and aBC -0.065 (mms?) ac=0.037 (to right) and BC =0.065 (mm) none of these answers ac=0.048 (to night) and BC = 0.033 (mm) ac 0.037 (to nght) and agc =0.033 (mus)
