An air compressor is operated at cut-in and cut-out pressures of 3500 kPa and 5200 kPa, respectively. It supplies air to

Post by answerhappygod »

An Air Compressor Is Operated At Cut In And Cut Out Pressures Of 3500 Kpa And 5200 Kpa Respectively It Supplies Air To 1
An Air Compressor Is Operated At Cut In And Cut Out Pressures Of 3500 Kpa And 5200 Kpa Respectively It Supplies Air To 1 (31.53 KiB) Viewed 67 times

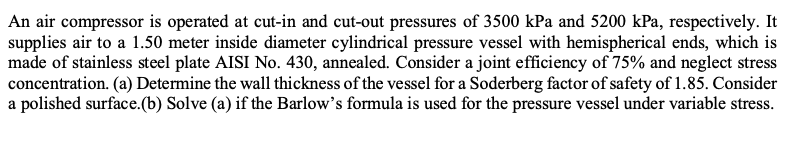

An air compressor is operated at cut-in and cut-out pressures of 3500 kPa and 5200 kPa, respectively. It supplies air to a 1.50 meter inside diameter cylindrical pressure vessel with hemispherical ends, which is made of stainless steel plate AISI No. 430, annealed. Consider a joint efficiency of 75% and neglect stress concentration. (a) Determine the wall thickness of the vessel for a Soderberg factor of safety of 1.85. Consider a polished surface.(b) Solve (a) if the Barlow's formula is used for the pressure vessel under variable stress.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
