1. A l-mm-thick symmetric cross-ply laminate is constructed from 5 identical laminae having the following stiffness matr

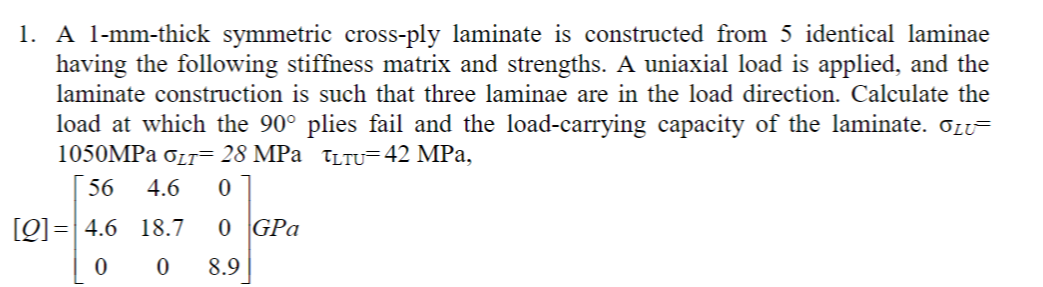

1. A l-mm-thick symmetric cross-ply laminate is constructed from 5 identical laminae having the following stiffness matrix and strengths. A uniaxial load is applied, and the laminate construction is such that three laminae are in the load direction. Calculate the load at which the 90° plies fail and the load-carrying capacity of the laminate. OLL= 1050MPa OLT= 28 MPa tutu=42 MPa, 56 4.6 0 [Q]= 4.6 18.7 0 GPa 8.9 0 0
