B Problem: Consider the tool shown in the figure. Please carefully check it out. Notice that AB, AD ve DE link are doubl

[answerhappygod]

B Problem Consider The Tool Shown In The Figure Please Carefully Check It Out Notice That Ab Ad Ve De Link Are Doubl 1 (74.28 KiB) Viewed 52 times

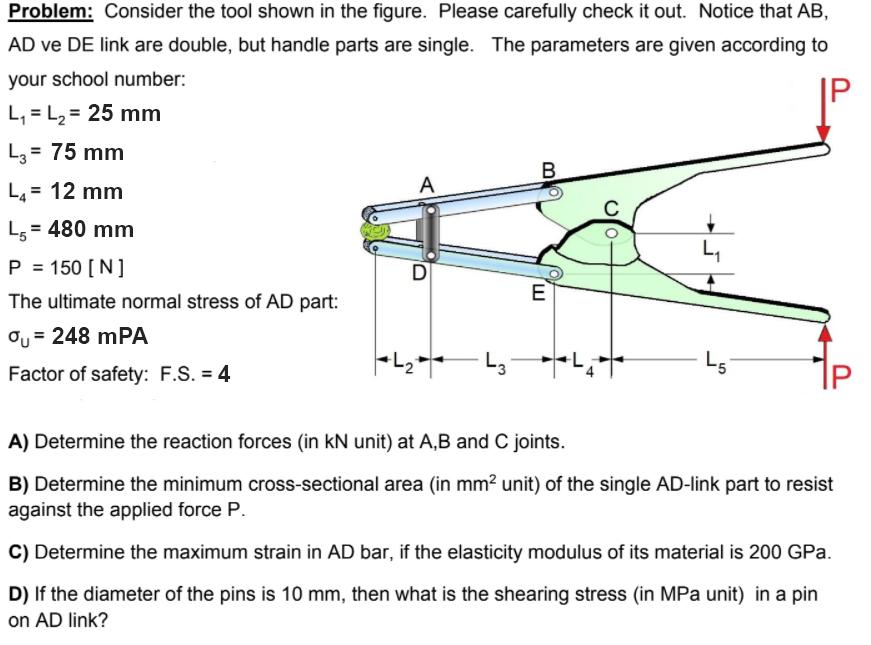

B Problem: Consider the tool shown in the figure. Please carefully check it out. Notice that AB, AD ve DE link are double, but handle parts are single. The parameters are given according to your school number: IP L, = L2 = 25 mm L3 = 75 mm LA = 12 mm A L5 = 480 mm L P = 150 [N] D E The ultimate normal stress of AD part: Ou= 248 mPA Factor of safety: F.S. = 4 L27 L3 = -وا۔ Lg A) Determine the reaction forces (in kN unit) at A,B and C joints. B) Determine the minimum cross-sectional area (in mm2 unit) of the single AD-link part to resist against the applied force P. C) Determine the maximum strain in AD bar, if the elasticity modulus of its material is 200 GPa. D) If the diameter of the pins is 10 mm, then what is the shearing stress in MPa unit) in a pin on AD link?
