can you help with 4.33 i dont get this question

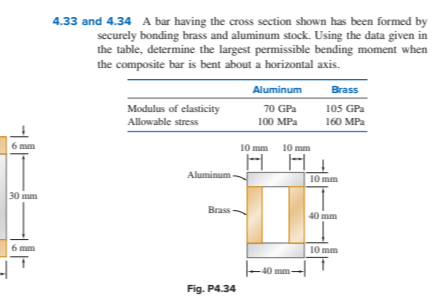

4.33 and 4.34 A bar having the cross section shown has been formed by securely bonding brass and aluminum stock. Using the data given in the table, determine the largest permissible bending moment when the composite bar is bent about a horizontal axis. Aluminum Brass Modulus of elasticity 70 GPa 105 GPa Allowable stress 100 MPa 160 MPa 6 mm 10 mm 10 mm HH 10 mm Aluminum 30 mm Brass 40 mm 6 mm 10 mm -40 mm Fig. P4.34
