D 5. Consider the Wheatstone bridge below where R3 = R4 = 150 12. R2 is a variable resistor, R1 is sensor resistance mea

Post by answerhappygod »

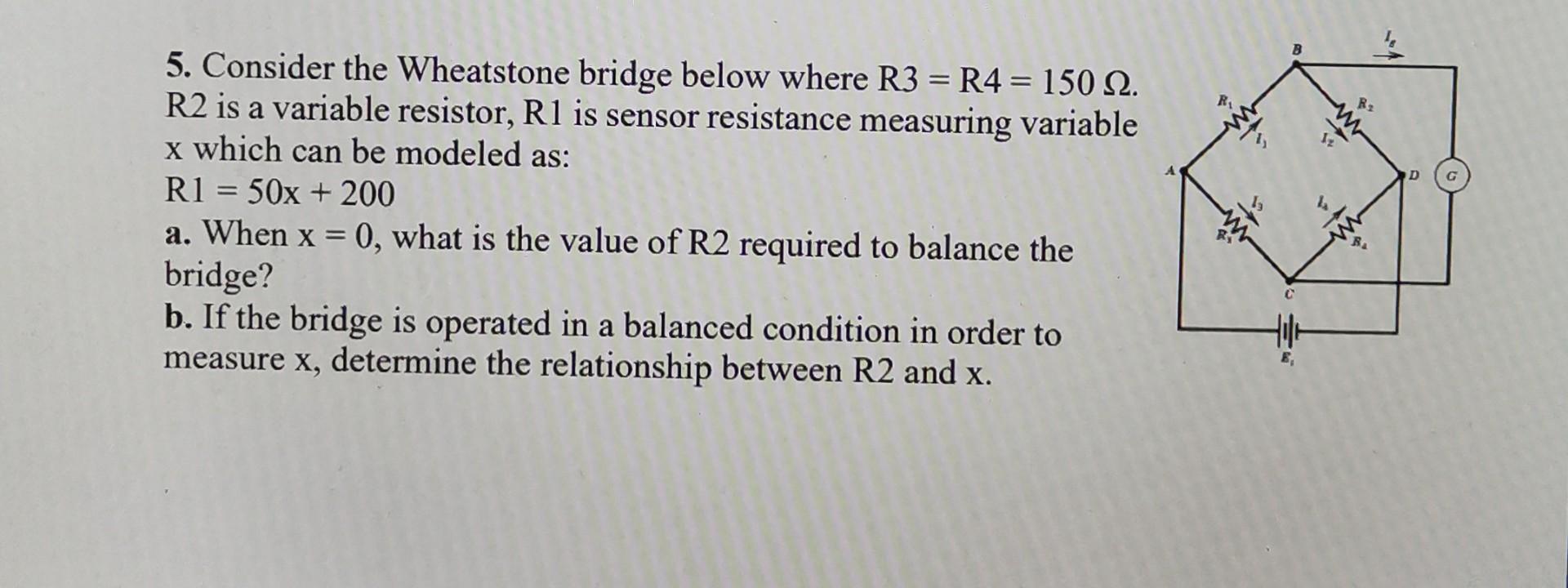

D 5 Consider The Wheatstone Bridge Below Where R3 R4 150 12 R2 Is A Variable Resistor R1 Is Sensor Resistance Mea 1
D 5 Consider The Wheatstone Bridge Below Where R3 R4 150 12 R2 Is A Variable Resistor R1 Is Sensor Resistance Mea 1 (117.41 KiB) Viewed 46 times
D 5. Consider the Wheatstone bridge below where R3 = R4 = 150 12. R2 is a variable resistor, R1 is sensor resistance measuring variable x which can be modeled as: R1 50x + 200 a. When x = 0, what is the value of R2 required to balance the bridge? b. If the bridge is operated in a balanced condition in order to measure x, determine the relationship between R2 and x. =
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
