Thermodynamic Q1: Consider a steam power plant that operates on Rankine Cycle under the following data: Boiler pressure:

Post by answerhappygod »

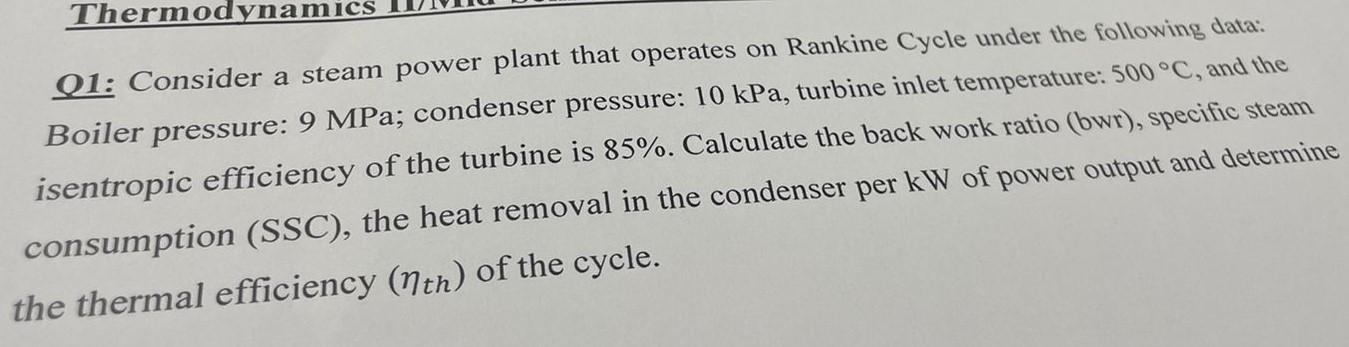

Thermodynamic Q1 Consider A Steam Power Plant That Operates On Rankine Cycle Under The Following Data Boiler Pressure 1
Thermodynamic Q1 Consider A Steam Power Plant That Operates On Rankine Cycle Under The Following Data Boiler Pressure 1 (57.07 KiB) Viewed 50 times
Thermodynamic Q1: Consider a steam power plant that operates on Rankine Cycle under the following data: Boiler pressure: 9 MPa; condenser pressure: 10 kPa, turbine inlet temperature: 500 °C, and the isentropic efficiency of the turbine is 85%. Calculate the back work ratio (bwr), specific steam consumption (SSC), the heat removal in the condenser per kW of power output and determine the thermal efficiency (nth) of the cycle.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
