Problem 1: IfF (x, y, z)= sum of (m0, m3, m6), write the equation of F and draw the complete truth table showing x, y, z

[answerhappygod]

Problem 1 Iff X Y Z Sum Of M0 M3 M6 Write The Equation Of F And Draw The Complete Truth Table Showing X Y Z 1 (27.14 KiB) Viewed 29 times

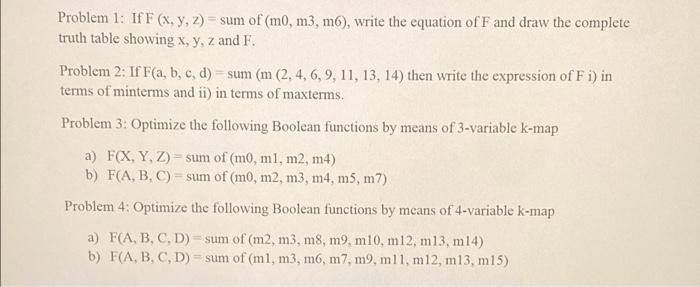

Problem 1: IfF (x, y, z)= sum of (m0, m3, m6), write the equation of F and draw the complete truth table showing x, y, z and F. Problem 2: If F(a, b, c, d) = sum (m (2, 4, 6, 9, 11, 13, 14) then write the expression of F i) in terms of minterms and ii) in terms of maxterms. Problem 3: Optimize the following Boolean functions by means of 3-variable k-map a) F(X, Y, Z) = sum of (m0, m1, m2, m4) b) F(A, B, C) sum of (m0, m2, m3, m4, m5, m7) Problem 4: Optimize the following Boolean functions by means of 4-variable k-map a) F(A, B, C, D) - sum of (m2, m3, m8, m9, m10, m12, m13, m14) b) F(A, B, C, D) sum of (m1, m3, m6, m7, m9, m11, m12, m13, m15)
