210 mm 30 mm 1 30 mm 300 mm x NA Problem # 2 (3.5 points) The cross-section of the beam ABC in Problem 1 is shown in Fig

[answerhappygod]

210 Mm 30 Mm 1 30 Mm 300 Mm X Na Problem 2 3 5 Points The Cross Section Of The Beam Abc In Problem 1 Is Shown In Fig 1 (21.96 KiB) Viewed 55 times

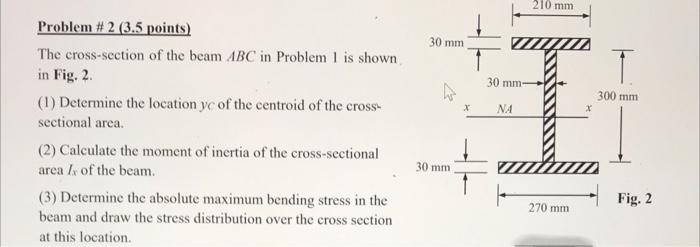

210 mm 30 mm 1 30 mm 300 mm x NA Problem # 2 (3.5 points) The cross-section of the beam ABC in Problem 1 is shown in Fig. 2. (1) Determine the location yc of the centroid of the cross- sectional area. (2) Calculate the moment of inertia of the cross-sectional area lx of the beam. (3) Determine the absolute maximum bending stress in the beam and draw the stress distribution over the cross section at this location. 30 mm Fig. 2 270 mm
