This System S Main Objective Is To Perform A Set Of Operations Feeding Clamping And Cutting When A Set Of Oper 1 (59.77 KiB) Viewed 36 times
need to be design the attachment let feeding to the bar automatically and cutting also
sketch and Draw
give exact material selection
This System S Main Objective Is To Perform A Set Of Operations Feeding Clamping And Cutting When A Set Of Oper 2 (59.77 KiB) Viewed 36 times

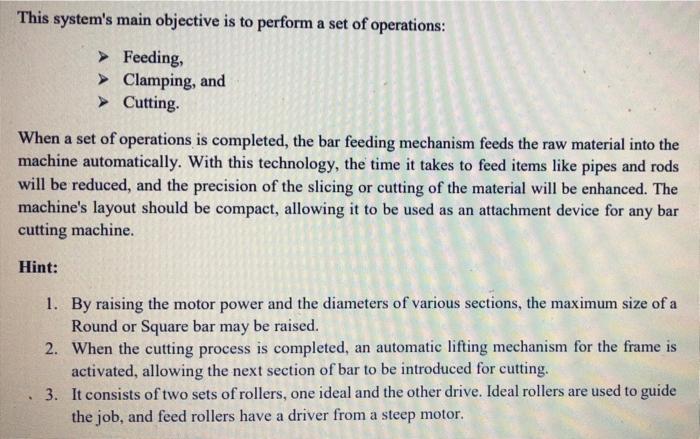

This system's main objective is to perform a set of operations: > Feeding, ► Clamping, and → Cutting. When a set of operations is completed, the bar feeding mechanism feeds the raw material into the machine automatically. With this technology, the time it takes to feed items like pipes and rods will be reduced, and the precision of the slicing or cutting of the material will be enhanced. The machine's layout should be compact, allowing it to be used as an attachment device for any bar cutting machine. Hint: 1. By raising the motor power and the diameters of various sections, the maximum size of a Round or Square bar may be raised. 2. When the cutting process is completed, an automatic lifting mechanism for the frame is activated, allowing the next section of bar to be introduced for cutting. 3. It consists of two sets of rollers, one ideal and the other drive. Ideal rollers are used to guide the job, and feed rollers have a driver from a steep motor.
