efficiency A gear pump is being used with following specifications : 75 mm outside diameter, a 50 mm inside diameter, an

[answerhappygod]

Efficiency A Gear Pump Is Being Used With Following Specifications 75 Mm Outside Diameter A 50 Mm Inside Diameter An 1 (58.87 KiB) Viewed 50 times

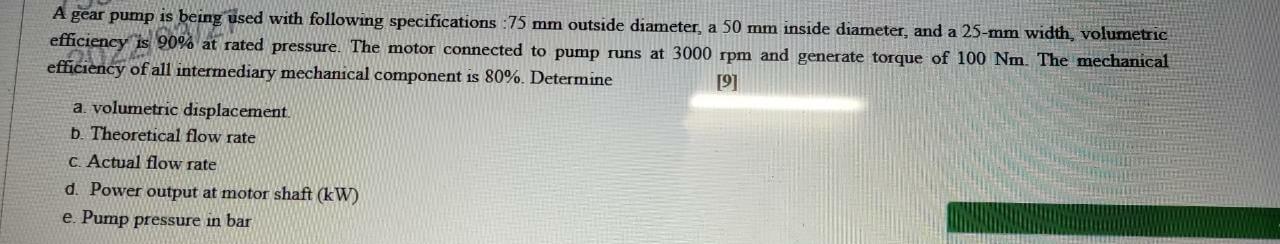

efficiency A gear pump is being used with following specifications : 75 mm outside diameter, a 50 mm inside diameter, and a 25-mm width, volumetric efficiency is 90% at rated pressure. The motor connected to pump runs at 3000 rpm and generate torque of 100 Nm. The mechanical efficiency of all intermediary mechanical component is 80%. Determine [9] a. volumetric displacement. b. Theoretical flow rate C. Actual flow rate d. Power output at motor shaft (kW) e. Pump pressure in bar
