Assuming frictionless, incompressible one-dimensional flow of water through the horizontaltee connection sketched in the

Post by answerhappygod »

Assuming Frictionless Incompressible One Dimensional Flow Of Water Through The Horizontaltee Connection Sketched In The 1
Assuming Frictionless Incompressible One Dimensional Flow Of Water Through The Horizontaltee Connection Sketched In The 1 (23.55 KiB) Viewed 61 times

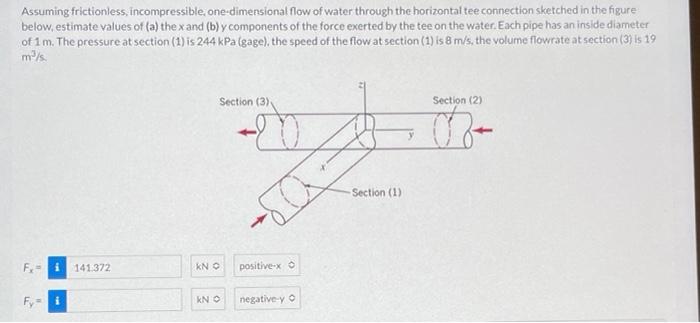

Assuming frictionless, incompressible one-dimensional flow of water through the horizontaltee connection sketched in the figure below, estimate values of (a) the x and (b) y components of the force exerted by the tee on the water. Each pipe has an inside diameter of 1m. The pressure at section (1) is 244 kPa (gage), the speed of the flow at section (1) is 8 m/s, the volume flowrate at section (3) Is 19 m/s Section (3) Section (2) 02 Section (1) 141372 KNO positive-x 0 KNO negative-yo
