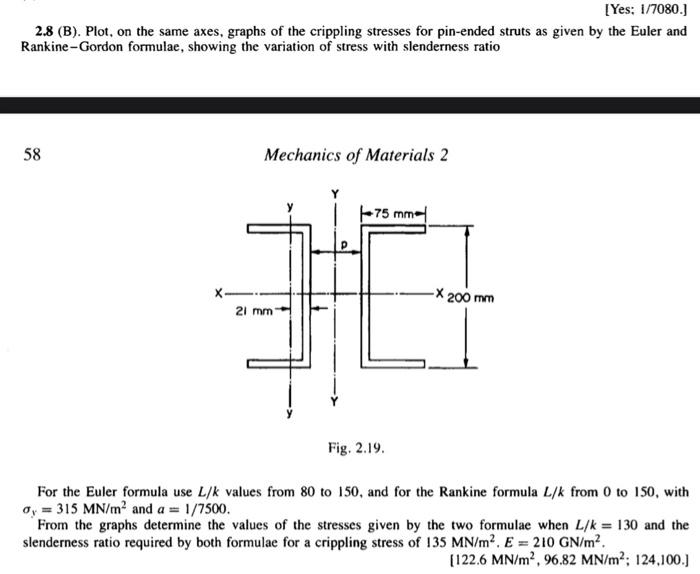

[Yes: 1/7080. 2.8 (B). Plot, on the same axes, graphs of the crippling stresses for pin-ended struts as given by the Euler and Rankine-Gordon formulae, showing the variation of stress with slenderness ratio 58 Mechanics of Materials 2 |-75 mm -X 200 mm 21 mm Fig. 2.19. For the Euler formula use L/k values from 80 to 150, and for the Rankine formula L/k from 0 to 150, with 0, = 315 MN/m2 and a = 1/7500. From the graphs determine the values of the stresses given by the two formulae when L/k = 130 and the slenderness ratio required by both formulae for a crippling stress of 135 MN/m². E = 210 GN/m². [122.6 MN/m², 96.82 MN/m²; 124,100.)
