The 13-kg bar is released from rest while in the position shown and its end rollers travel in the vertical-plane slot sh

Post by answerhappygod »

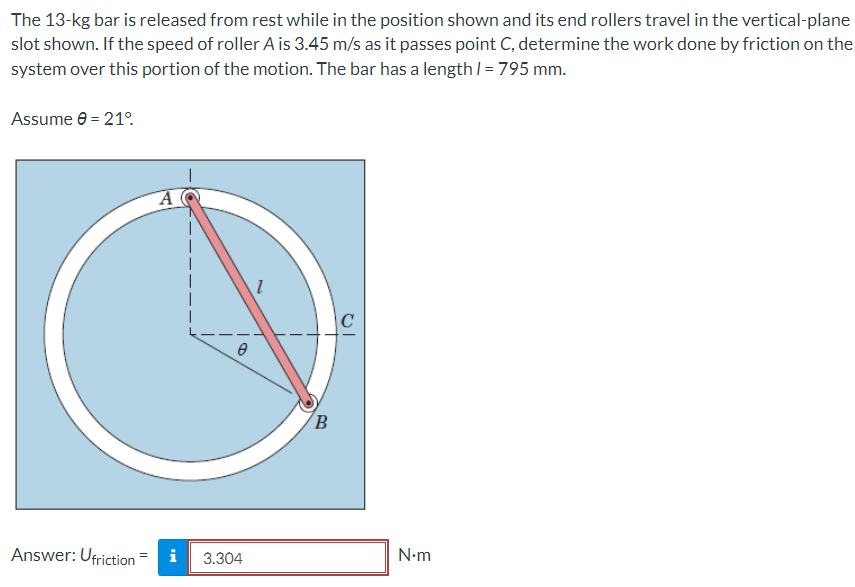

The 13 Kg Bar Is Released From Rest While In The Position Shown And Its End Rollers Travel In The Vertical Plane Slot Sh 1
The 13 Kg Bar Is Released From Rest While In The Position Shown And Its End Rollers Travel In The Vertical Plane Slot Sh 1 (54.22 KiB) Viewed 29 times
The 13-kg bar is released from rest while in the position shown and its end rollers travel in the vertical-plane slot shown. If the speed of roller A is 3.45 m/s as it passes point C, determine the work done by friction on the system over this portion of the motion. The bar has a length 1 = 795 mm. Assume = 21 A 2 | | с e B Answer: Ufriction i i 3.304 N.m
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
