A pump is used to pump water from a reservoir to a water tank as shown in the figure below. Most pumps have a pump curve

Post by answerhappygod »

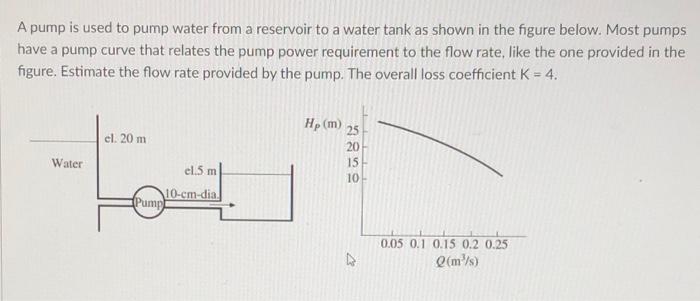

A Pump Is Used To Pump Water From A Reservoir To A Water Tank As Shown In The Figure Below Most Pumps Have A Pump Curve 1
A Pump Is Used To Pump Water From A Reservoir To A Water Tank As Shown In The Figure Below Most Pumps Have A Pump Curve 1 (24.08 KiB) Viewed 25 times
A pump is used to pump water from a reservoir to a water tank as shown in the figure below. Most pumps have a pump curve that relates the pump power requirement to the flow rate, like the one provided in the figure. Estimate the flow rate provided by the pump. The overall loss coefficient k = 4. Hp (m el. 20 m 25 20 15 10 Water el.5 m 10-cm-dia Pump 0.05 0.1 0.15 0.2 0.25 Q(m/s)
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
