Instructions: * *You should do simple research about EQUALITY COMPARATORS. You should be able to answer the below questi

[answerhappygod]

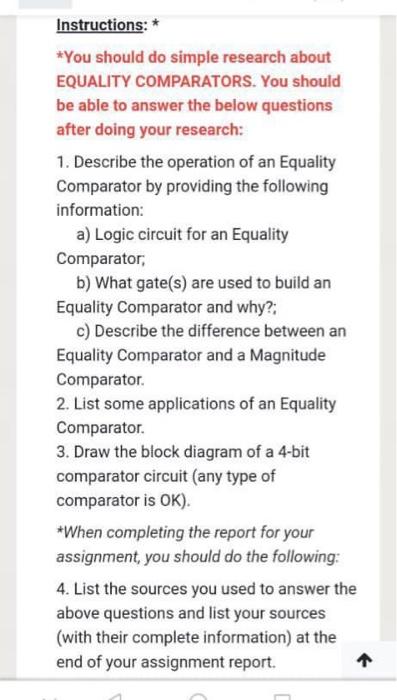

Instructions You Should Do Simple Research About Equality Comparators You Should Be Able To Answer The Below Questi 1 (44.34 KiB) Viewed 31 times

Instructions: * *You should do simple research about EQUALITY COMPARATORS. You should be able to answer the below questions after doing your research: 1. Describe the operation of an Equality Comparator by providing the following information: a) Logic circuit for an Equality Comparator; b) What gate(s) are used to build an Equality Comparator and why?; c) Describe the difference between an Equality Comparator and a Magnitude Comparator. 2. List some applications of an Equality Comparator. 3. Draw the block diagram of a 4-bit comparator circuit (any type of comparator is OK). *When completing the report for your assignment, you should do the following: 4. List the sources you used to answer the above questions and list your sources (with their complete information) at the end of your assignment report.
