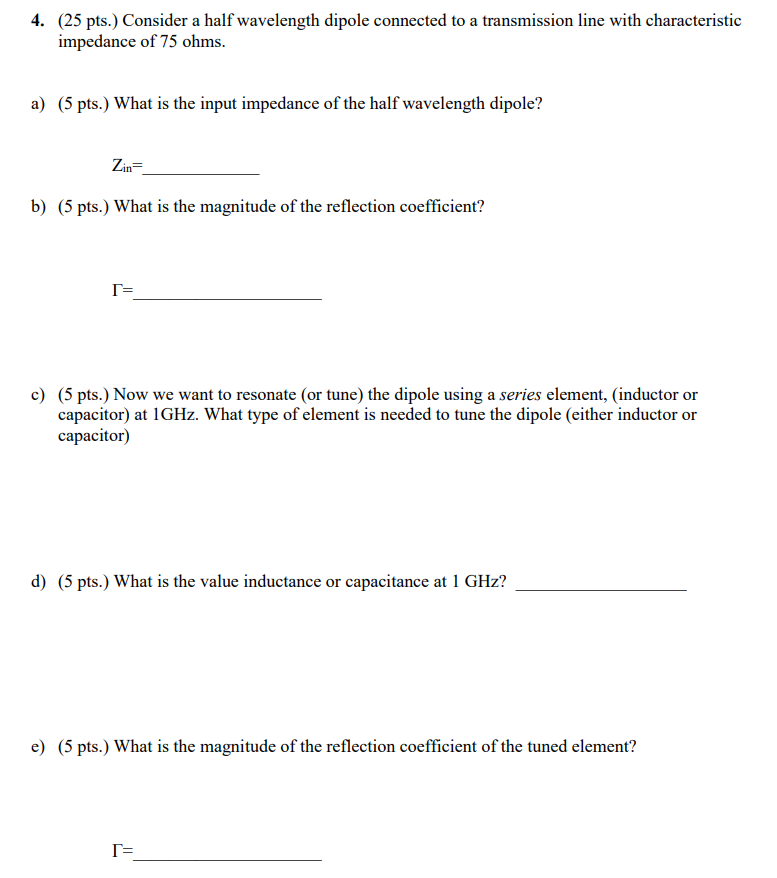

4. (25 pts.) Consider a half wavelength dipole connected to a transmission line with characteristic impedance of 75 ohms. a) (5 pts.) What is the input impedance of the half wavelength dipole? Zin b) (5 pts.) What is the magnitude of the reflection coefficient? T= c) (5 pts.) Now we want to resonate (or tune) the dipole using a series element, (inductor or capacitor) at 1GHz. What type of element is needed to tune the dipole (either inductor or capacitor) d) (5 pts.) What is the value inductance or capacitance at 1 GHz? e) (5 pts.) What is the magnitude of the reflection coefficient of the tuned element? T=
4. (25 pts.) Consider a half wavelength dipole connected to a transmission line with characteristic impedance of 75 ohms. a) (5 pts.) What is the input impedance of the half wavelength dipole? Zin b) (5 pts.) What is the magnitude of the reflection coefficient? T= c) (5 pts.) Now we want to resonate (or tune) the dipole using a series element, (inductor or capacitor) at 1GHz. What type of element is needed to tune the dipole (either inductor or capacitor) d) (5 pts.) What is the value inductance or capacitance at 1 GHz? e) (5 pts.) What is the magnitude of the reflection coefficient of the tuned element? T=
