Solution, please!!
Solution, please!!

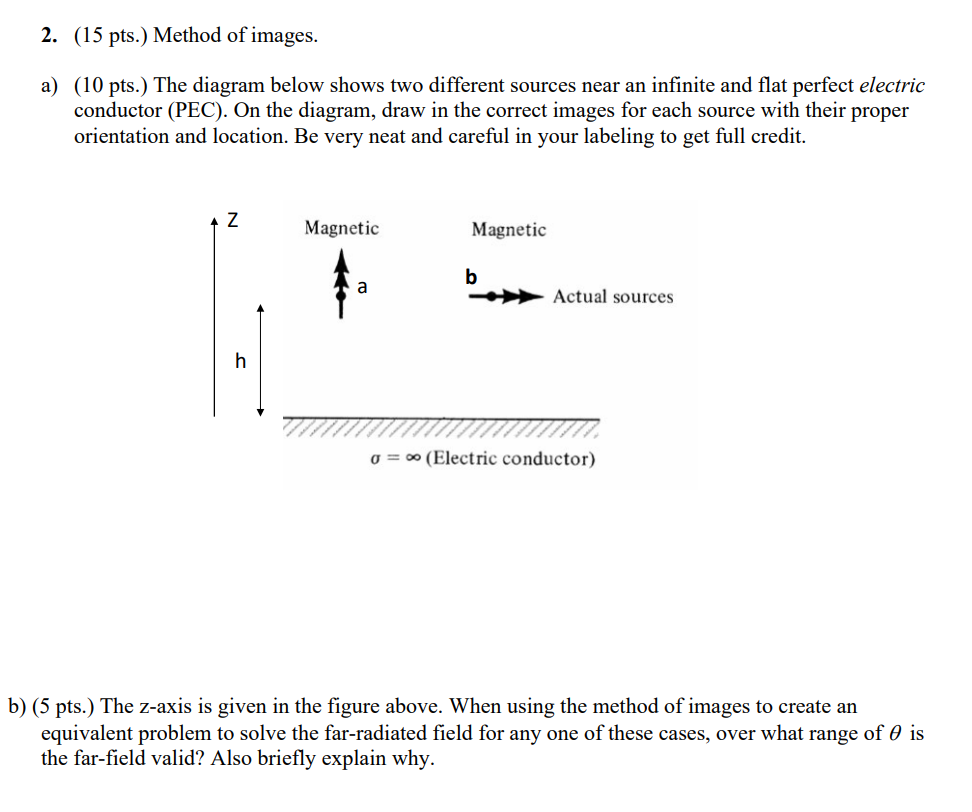

2. (15 pts.) Method of images. a) (10 pts.) The diagram below shows two different sources near an infinite and flat perfect electric conductor (PEC). On the diagram, draw in the correct images for each source with their proper orientation and location. Be very neat and careful in your labeling to get full credit. Z Magnetic Magnetic b a Actual sources o= (Electric conductor) b) (5 pts.) The z-axis is given in the figure above. When using the method of images to create an equivalent problem to solve the far-radiated field for any one of these cases, over what range of O is the far-field valid? Also briefly explain why.
2. (15 pts.) Method of images. a) (10 pts.) The diagram below shows two different sources near an infinite and flat perfect electric conductor (PEC). On the diagram, draw in the correct images for each source with their proper orientation and location. Be very neat and careful in your labeling to get full credit. Z Magnetic Magnetic b a Actual sources o= (Electric conductor) b) (5 pts.) The z-axis is given in the figure above. When using the method of images to create an equivalent problem to solve the far-radiated field for any one of these cases, over what range of O is the far-field valid? Also briefly explain why.
