100 Ω 200Ω 300 Ω ΑΛΛ w w + 150Ω ξ 250 Ω 350 Ω 400 Ω RL 9V W HI

Post by answerhappygod »

1
1 (137.18 KiB) Viewed 31 times

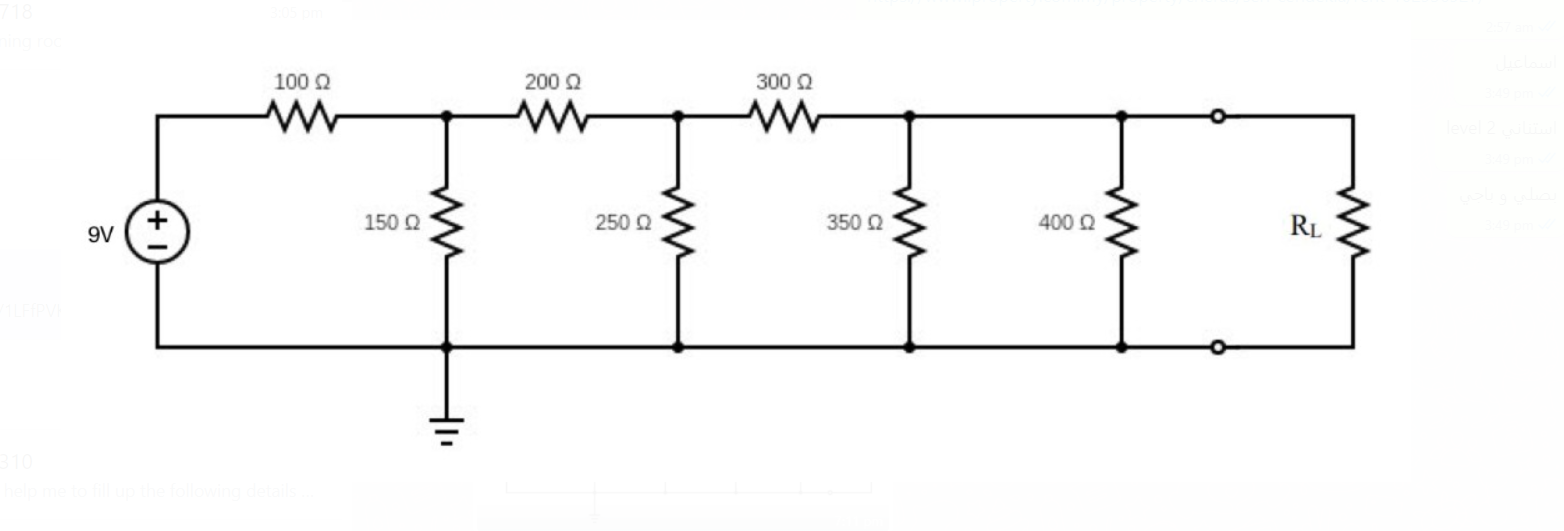

i. Solve the voltage 𝑉𝐿 and current 𝐼𝐿
flow through the resistor RL by calculation and
simulation.
ii. Solve the power P delivered to resistor RL by calculation.
(Amtul)
iii. Solve the maximum power 𝑃𝑚𝑎𝑥 delivered to resistor RL by
calculation.
