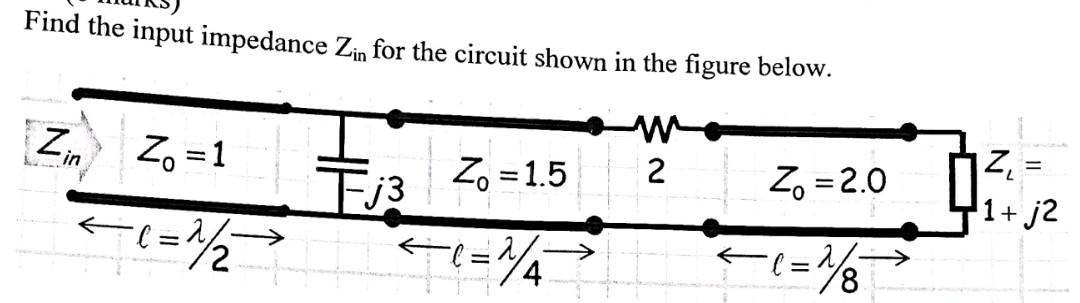

Find the input impedance Zin for the circuit shown in the figure below. Z w 2 in Zo=1 Zo = 1.5 Tj3 = Zo =2.0 ZE 1 + j2 -
