A full Wave rectifier shown in the circuit has 120V (rms) 50Hz input through a transformer. RL = 200 Ohm, If silicon dio

Post by answerhappygod »

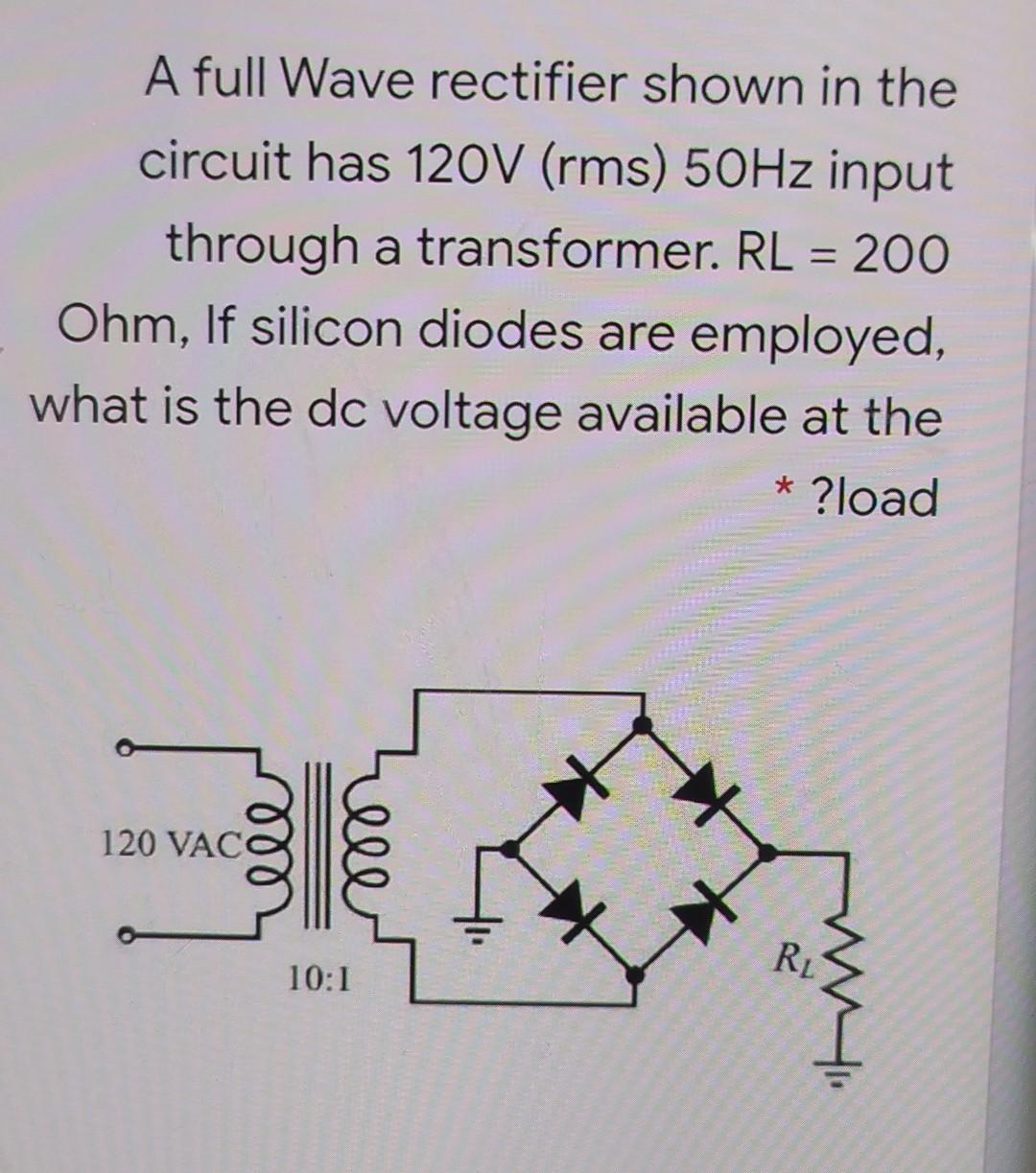

A Full Wave Rectifier Shown In The Circuit Has 120v Rms 50hz Input Through A Transformer Rl 200 Ohm If Silicon Dio 1
A Full Wave Rectifier Shown In The Circuit Has 120v Rms 50hz Input Through A Transformer Rl 200 Ohm If Silicon Dio 1 (132.25 KiB) Viewed 24 times
A full Wave rectifier shown in the circuit has 120V (rms) 50Hz input through a transformer. RL = 200 Ohm, If silicon diodes are employed, what is the dc voltage available at the = * ?load 120 VAC heel ell w RL 10:1
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
