Repeat Question 3 Using Matlab Note Please Only Do Task On Matlab 1 (10.92 KiB) Viewed 24 times
Note:
Please only do task on MATLAB

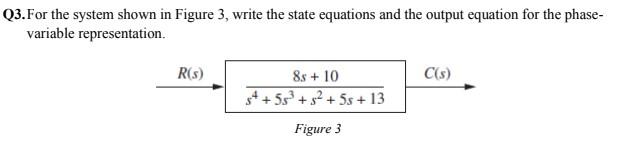

Q3. For the system shown in Figure 3, write the state equations and the output equation for the phase- variable representation R(s) C(s) 8s + 10 s+ +55 +52 +55 +13 Figure 3
