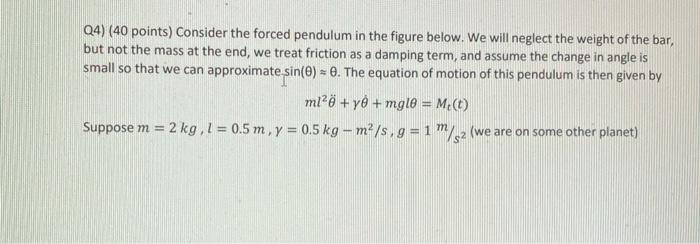

Q4) (40 points) Consider the forced pendulum in the figure below. We will neglect the weight of the bar, but not the mass at the end, we treat friction as a damping term, and assume the change in angle is small so that we can approximate.sin(0) = 0. The equation of motion of this pendulum is then given by ml²0+ ye+mgle = M₁(t) Suppose m = 2 kg, l = 0.5 m, y = 0.5 kg-m²/s, g = 1 m/2 (we are on some other planet)

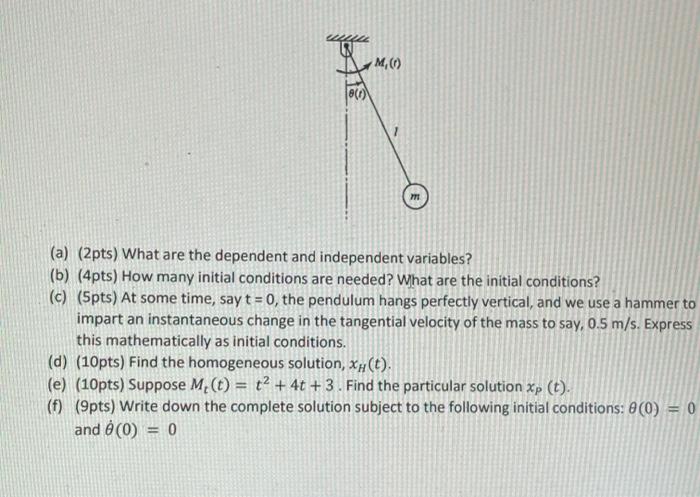

0(1) M,() m (a) (2pts) What are the dependent and independent variables? (b) (4pts) How many initial conditions are needed? What are the initial conditions? (c) (5pts) At some time, say t = 0, the pendulum hangs perfectly vertical, and we use a hammer to impart an instantaneous change in the tangential velocity of the mass to say, 0.5 m/s. Express this mathematically as initial conditions. (d) (10pts) Find the homogeneous solution, x (t). (e) (10pts) Suppose M, (t) = t² + 4t+3. Find the particular solution xp (t). (f) (9pts) Write down the complete solution subject to the following initial conditions: 8 (0) = 0 and 0 (0) = 0
