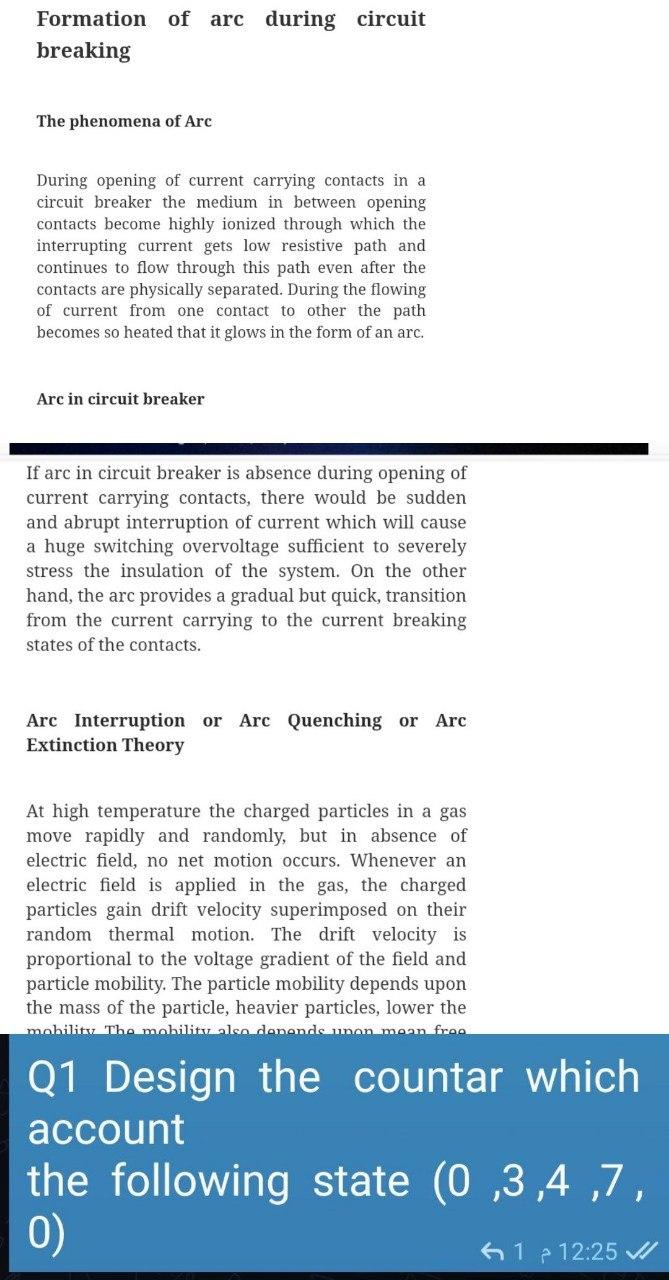

Arc During Circuit Formation Of Breaking The Phenomena Of Arc During Opening Of Current Carrying Contacts In A Circuit B 1 (122.46 KiB) Viewed 34 times

arc during circuit Formation of breaking The phenomena of Arc During opening of current carrying contacts in a circuit breaker the medium in between opening contacts become highly ionized through which the interrupting current gets low resistive path and continues to flow through this path even after the contacts are physically separated. During the flowing of current from one contact to other the path becomes so heated that it glows in the form of an arc. Arc in circuit breaker If arc in circuit breaker is absence during opening of current carrying contacts, there would be sudden and abrupt interruption of current which will cause a huge switching overvoltage sufficient to severely stress the insulation of the system. On the other hand, the arc provides a gradual but quick, transition from the current carrying to the current breaking states of the contacts. Arc Interruption or Arc Quenching or Arc Extinction Theory At high temperature the charged particles in a gas move rapidly and randomly, but in absence of electric field, no net motion occurs. Whenever an electric field is applied in the gas, the charged particles gain drift velocity superimposed on their random thermal motion. The drift velocity is proportional to the voltage gradient of the field and particle mobility. The particle mobility depends upon the mass of the particle, heavier particles, lower the mobility. The mobilitvalso denando unan men free Q1 Design the countar which account the following state (0,3,4,7, 0) 6 1 p 12:25 V
