Design a real-time digital watch using the below 4-bit counter with parallel load that was discussed in class. The syste

[answerhappygod]

Design A Real Time Digital Watch Using The Below 4 Bit Counter With Parallel Load That Was Discussed In Class The Syste 1 (96.34 KiB) Viewed 20 times

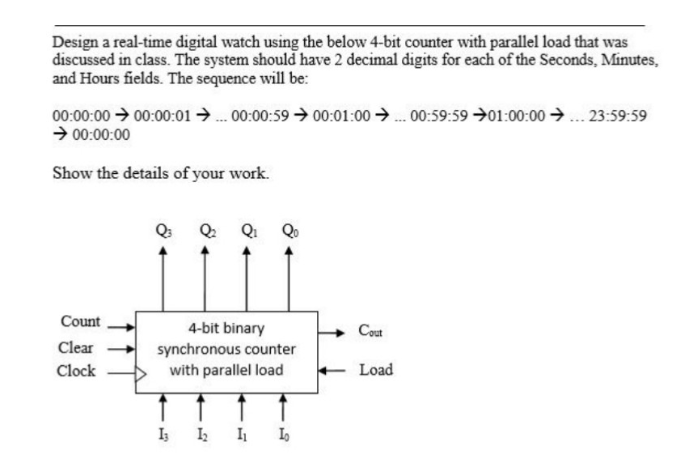

Design a real-time digital watch using the below 4-bit counter with parallel load that was discussed in class. The system should have 2 decimal digits for each of the Seconds, Minutes, and Hours fields. The sequence will be: 00:00:00 00:00:01 → ...00:00:59 → 00:01:00 → ...00:59:59 +01:00:00 → ... 23:59:59 → 00:00:00 Show the details of your work. Q Q Cout Count Clear Clock 4-bit binary synchronous counter with parallel load Load Iz 12 I L.
