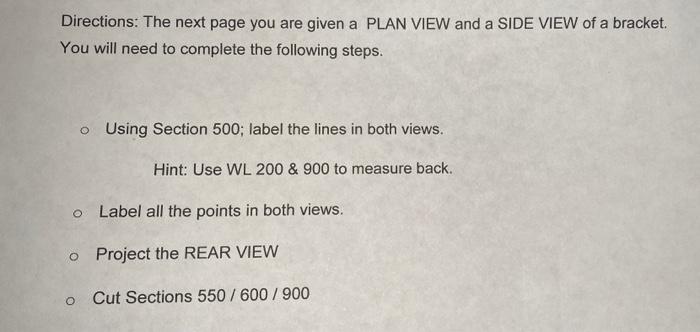

Directions. The next page you are given a PLAN VIEW and a SIDE VIEW of a bracket. You will need to complete the following steps. o Using Section 500; label the lines in both views. Hint: Use WL 200 & 900 to measure back. o Label all the points in both views o Project the REAR VIEW O Cut Sections 550/600 / 900
(500 (600 SECTION 900 SECTION 550 900) (200 D 550 900 SECTION 600 SECTION 500 (200) (200 900 (600) 500)
