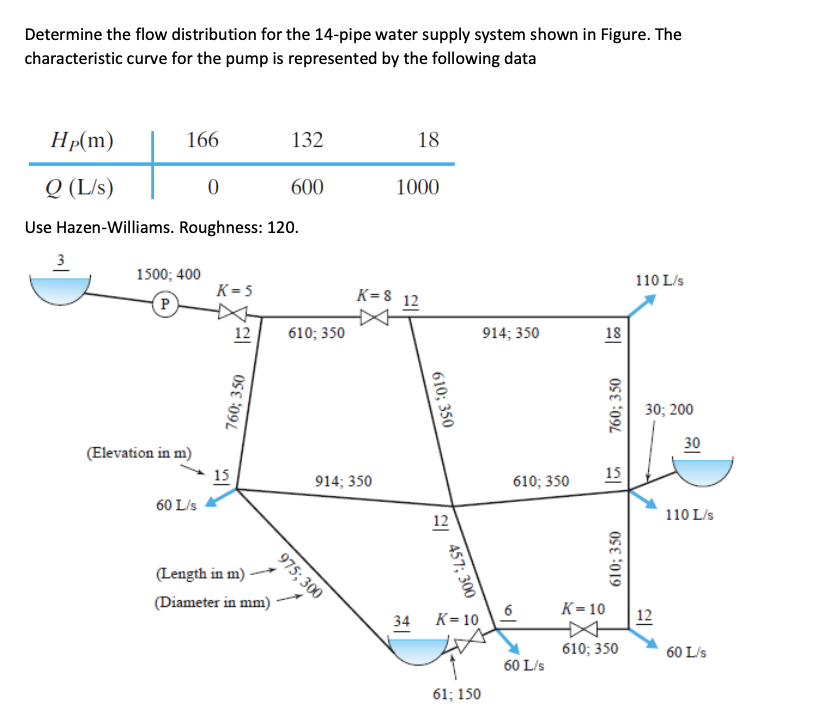

- Determine The Flow Distribution For The 14 Pipe Water Supply System Shown In Figure The Characteristic Curve For The Pu 1 (119.11 KiB) Viewed 46 times
120.
Determine the flow distribution for the 14-pipe water supply system shown in Figure. The characteristic curve for the pump is represented by the following data 166 132 18 Hp(m) Q Q (L/s) + 0 600 1000 Use Hazen-Williams. Roughness: 120. 3 1500; 400 K = 5 (Р 610; 350 110 L/s K=8 12 12 914; 350 18 760; 350 610; 350 760; 350 30; 200 (Elevation in m) 30 15 15 914; 350 610; 350 60 L/s 12 110 L/s (Length in m) (Diameter in mm) 610; 350 975; 300 457, 300 6 K = 10 34 K= 10 12 610; 350 60 L/S 60 L/S 61; 150
