A W21x93 tension member is connected with bolts through both flanges only in the arrangement shown. Determine the maximu

Post by answerhappygod »

A W21x93 Tension Member Is Connected With Bolts Through Both Flanges Only In The Arrangement Shown Determine The Maximu 1
A W21x93 Tension Member Is Connected With Bolts Through Both Flanges Only In The Arrangement Shown Determine The Maximu 1 (52.52 KiB) Viewed 39 times

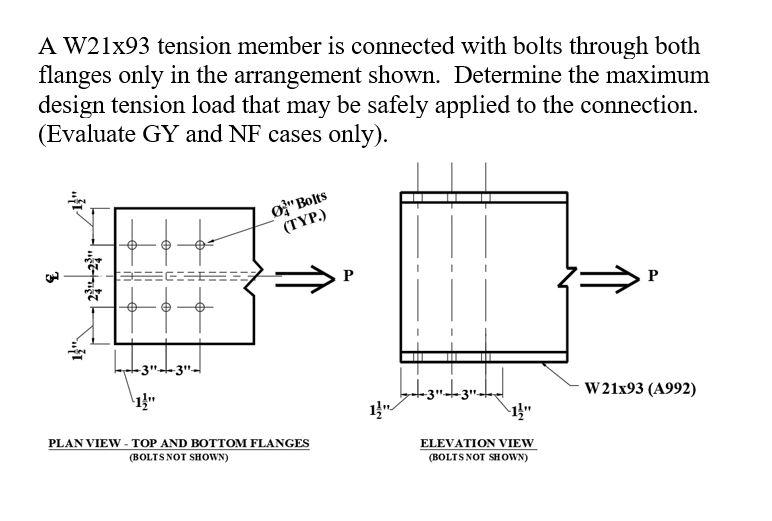

A W21x93 tension member is connected with bolts through both flanges only in the arrangement shown. Determine the maximum design tension load that may be safely applied to the connection. (Evaluate GY and NF cases only). 1!" "Bolts (TYP.) the con £ 214-23" P P -3- W21x93 (A992) 343 1!" ELEVATION VIEW (BOLTS NOT SHOWN) PLAN VIEW - TOP AND BOTTOM FLANGES (BOLTS NOT SHOWN)
