2. For the beam shown, determine the following: a. Classify the structures as statically determinate, statically indeter

Post by answerhappygod »

2 For The Beam Shown Determine The Following A Classify The Structures As Statically Determinate Statically Indeter 1
2 For The Beam Shown Determine The Following A Classify The Structures As Statically Determinate Statically Indeter 1 (36.58 KiB) Viewed 68 times

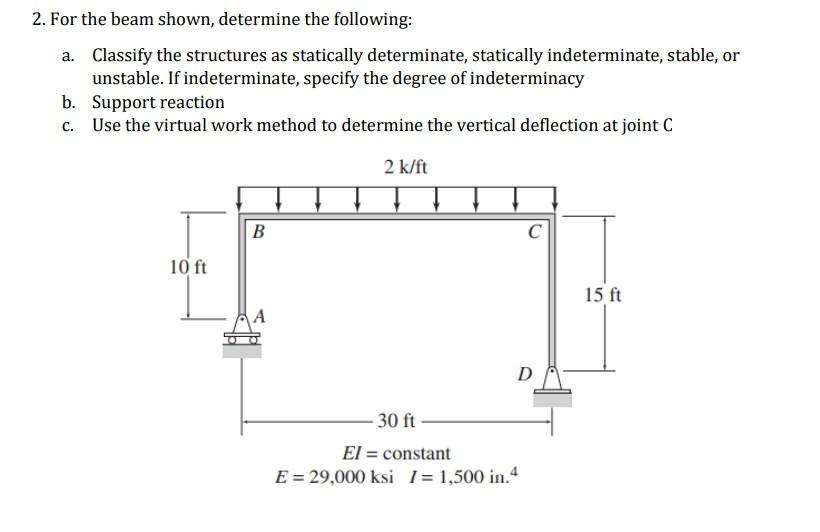

2. For the beam shown, determine the following: a. Classify the structures as statically determinate, statically indeterminate, stable, or unstable. If indeterminate, specify the degree of indeterminacy b. Support reaction c. Use the virtual work method to determine the vertical deflection at joint 2 k/ft B C 10 ft 15 ft А D 30 ft EI = constant E = 29,000 ksi [= 1,500 in.4
