PROBLEM 4.34 A bar having the cross section shown has been formed by securely bonding brass and aluminum stock. Using th

Post by answerhappygod »

Problem 4 34 A Bar Having The Cross Section Shown Has Been Formed By Securely Bonding Brass And Aluminum Stock Using Th 1
Problem 4 34 A Bar Having The Cross Section Shown Has Been Formed By Securely Bonding Brass And Aluminum Stock Using Th 1 (36.97 KiB) Viewed 57 times

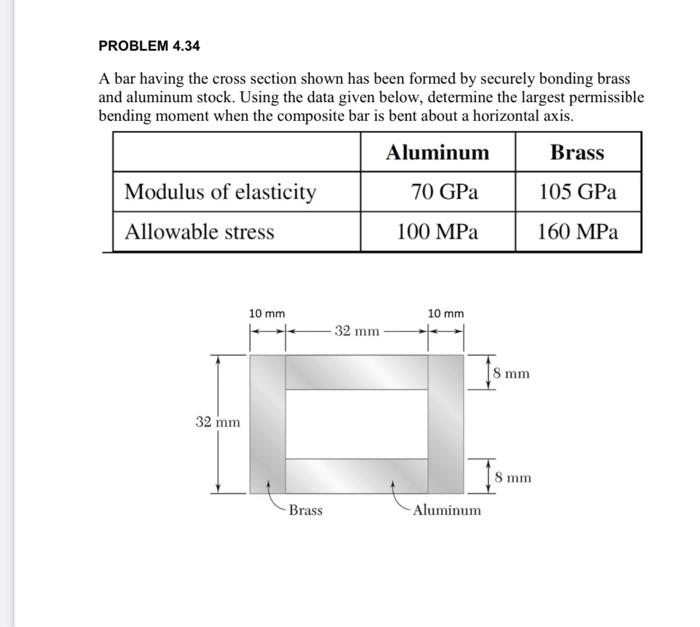

PROBLEM 4.34 A bar having the cross section shown has been formed by securely bonding brass and aluminum stock. Using the data given below, determine the largest permissible bending moment when the composite bar is bent about a horizontal axis. Aluminum Brass Modulus of elasticity 70 GPa 105 GPa Allowable stress 100 MPa 160 MPa 10 mm 10 mm 32 mm 15 8 mm 32 mm S mm Brass Aluminum
