Question 7 0 / 4 pts A2 m wide and 8 m high rectangular gate is closed at the end of a rectangular passage. The gate is

Post by answerhappygod »

Question 7 0 4 Pts A2 M Wide And 8 M High Rectangular Gate Is Closed At The End Of A Rectangular Passage The Gate Is 1
Question 7 0 4 Pts A2 M Wide And 8 M High Rectangular Gate Is Closed At The End Of A Rectangular Passage The Gate Is 1 (154.61 KiB) Viewed 72 times

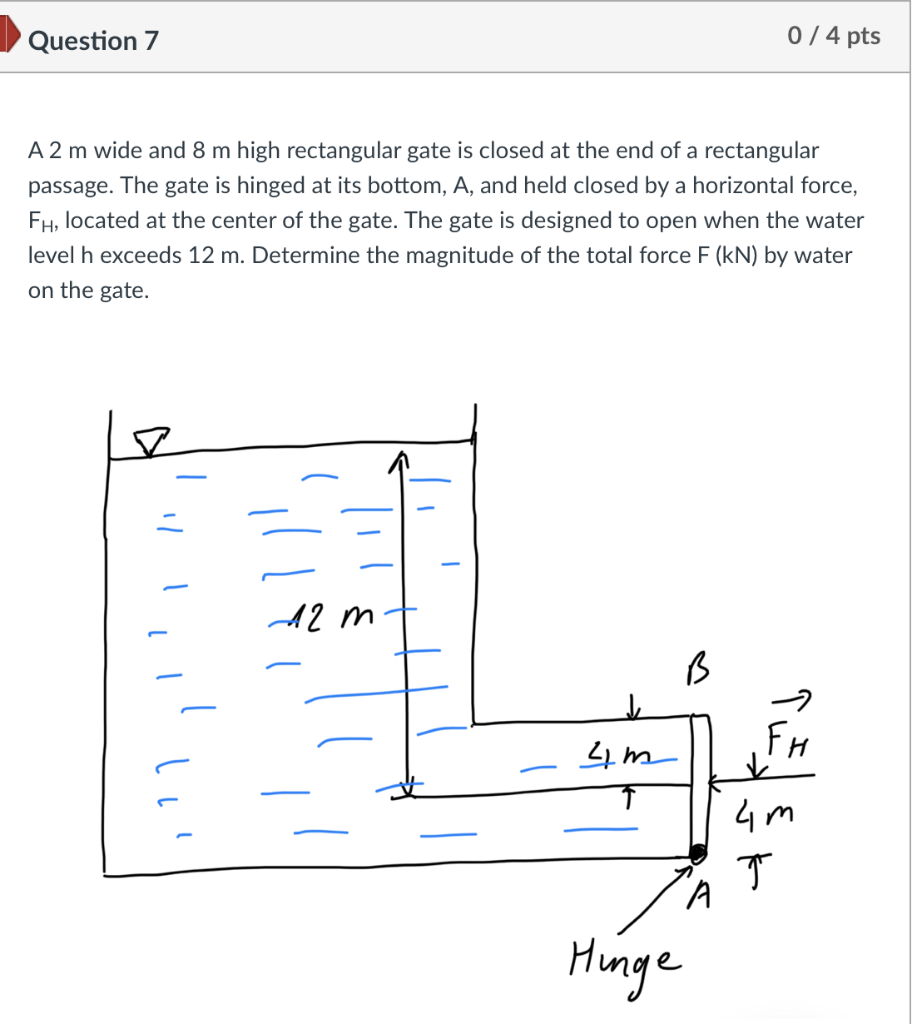

Question 7 0 / 4 pts A2 m wide and 8 m high rectangular gate is closed at the end of a rectangular passage. The gate is hinged at its bottom, A, and held closed by a horizontal force, FH, located at the center of the gate. The gate is designed to open when the water level h exceeds 12 m. Determine the magnitude of the total force F (kN) by water on the gate. 12 m B 7 F FH m T 4 m T А. Hinge
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
