According to the selected values of L, w and P for each student 1- Solve the shown two concrete structures, manually; (a

[answerhappygod]

According To The Selected Values Of L W And P For Each Student 1 Solve The Shown Two Concrete Structures Manually A 1 (48.03 KiB) Viewed 40 times

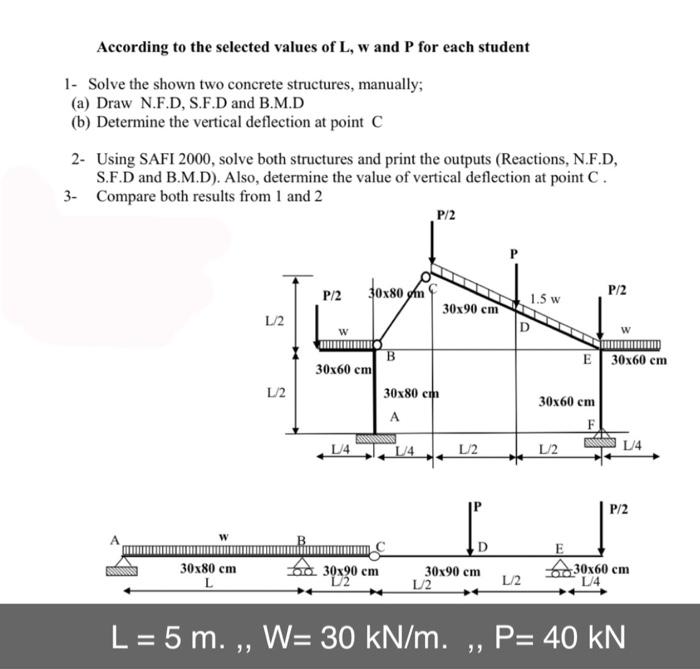

According to the selected values of L, w and P for each student 1- Solve the shown two concrete structures, manually; (a) Draw N.F.D, S.F.D and B.M.D (b) Determine the vertical deflection at point C 2- Using SAFI 2000, solve both structures and print the outputs (Reactions, N.F.D, S.F.D and B.M.D). Also, determine the value of vertical deflection at point C. 3- Compare both results from 1 and 2 P/2 P/2 30x80 on P/2 1.5 W 30x90 cm 1/2 W B E 30x60 cm 30x60 cm L/2 30x80 cm A 30x60 cm F SARAS L2 14 14 L/2 3 14 P/2 W 30x80 cm L a 30x90 cm D 30x90 cm 1/2 E A 30x60 cm /4 1/2 L2 L = 5 m.,, W= 30 kN/m. P= 40 kN 53
