Q1: For the beam and loading shown, (a) draw the shear and bending- moment diagrams. (b) determine the maximum absolute

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

Q1: For the beam and loading shown, (a) draw the shear and bending- moment diagrams. (b) determine the maximum absolute

Post by answerhappygod »

Q1 For The Beam And Loading Shown A Draw The Shear And Bending Moment Diagrams B Determine The Maximum Absolute 1
Q1 For The Beam And Loading Shown A Draw The Shear And Bending Moment Diagrams B Determine The Maximum Absolute 1 (28.98 KiB) Viewed 38 times

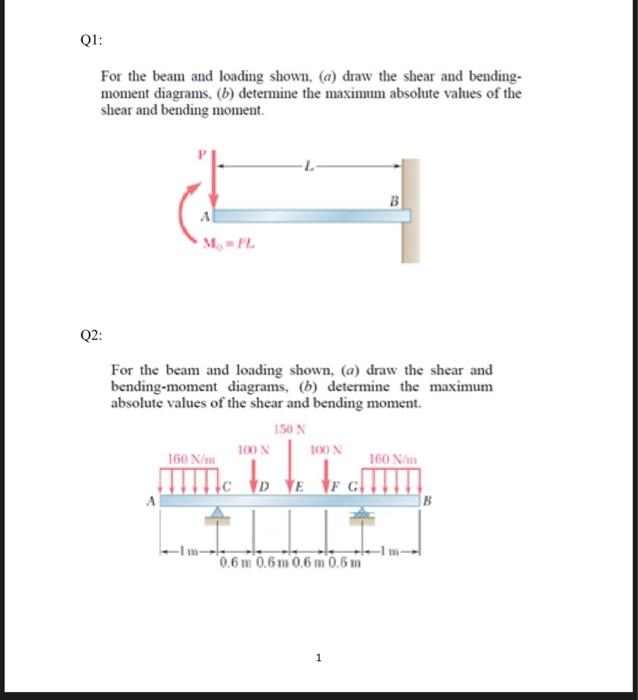

Q1: For the beam and loading shown, (a) draw the shear and bending- moment diagrams. (b) determine the maximum absolute values of the shear and bending moment. 2 B 1 M.PL Q2: For the beam and loading shown, (a) draw the shear and bending-moment diagrams, (b) determine the maximum absolute values of the shear and bending moment. 150 N 100 160 N/m 100 N 160 Nm DYE F G B + 0,6 m 0.6m 0.6 m 0.6 m 1
