Question 4 (4 marks) For the inclined beam shown below, calculate the support reactions and draw the bending moment diag

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

Question 4 (4 marks) For the inclined beam shown below, calculate the support reactions and draw the bending moment diag

Post by answerhappygod »

Question 4 4 Marks For The Inclined Beam Shown Below Calculate The Support Reactions And Draw The Bending Moment Diag 1
Question 4 4 Marks For The Inclined Beam Shown Below Calculate The Support Reactions And Draw The Bending Moment Diag 1 (17.36 KiB) Viewed 43 times

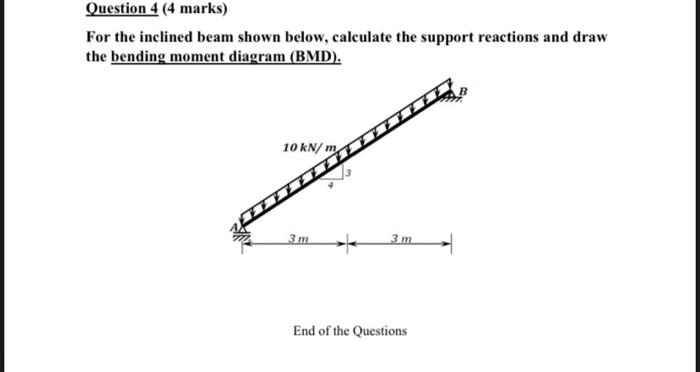

Question 4 (4 marks) For the inclined beam shown below, calculate the support reactions and draw the bending moment diagram (BMD). 10 kN/m 3 m 3 m End of the Questions
