Question 3 of 10 < > - / 10 = View Policies Current Attempt in Progress Determine the forces in members EH and El of the

[answerhappygod]

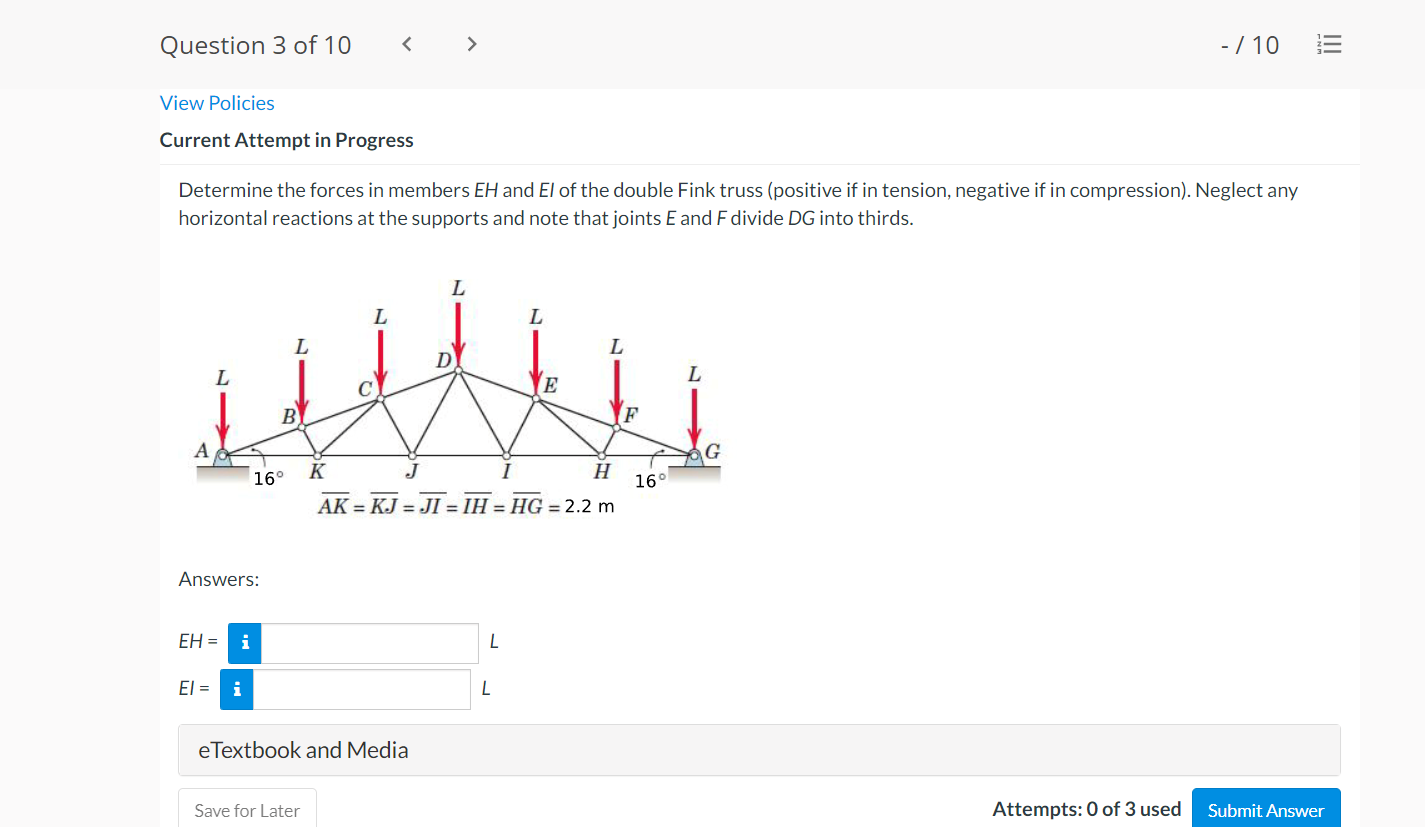

Question 3 Of 10 10 View Policies Current Attempt In Progress Determine The Forces In Members Eh And El Of The 1 (151.35 KiB) Viewed 42 times

Question 3 of 10 < > - / 10 = View Policies Current Attempt in Progress Determine the forces in members EH and El of the double Fink truss (positive if in tension, negative if in compression). Neglect any horizontal reactions at the supports and note that joints E and F divide DG into thirds. L L L L L D L L E B F А G 16° K J H 16° AK = KJ = JI =IH = HG = 2.2 m Answers: EH = i L El = i L e Textbook and Media Save for Later Attempts: 0 of 3 used Submit Answer
